Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRN3012BTA-470MFIXED IND 47UH 650MA 1.8OHM SMD |
3,122 |
|
Datasheet | SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 650 mA | 520mA | Shielded | 1.8Ohm Max | 10 @ 1MHz | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SRN2010TA-2R2MFIXED IND 2.2UH 1.2A 145MOHM SMD |
2,578 |
|
Datasheet | SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.26A | Shielded | 145mOhm | 14 @ 1MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

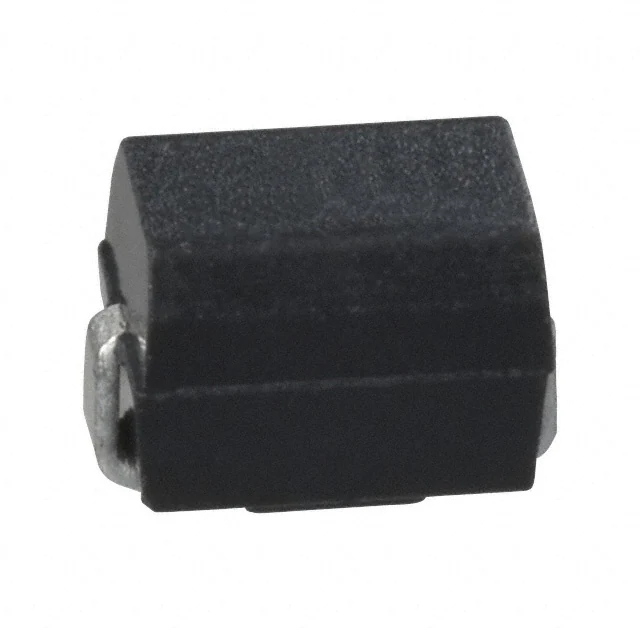

PM1812-100J-RCFIXED IND 10UH 250MA 1.6 OHM SMD |
1,672 |
|
Datasheet | PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±5% | 250 mA | - | Unshielded | 1.6Ohm Max | 50 @ 2.52MHz | 20MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
SRN3012BTA-330MFIXED IND 33UH 800MA 1.32OHM SMD |
1,121 |
|
Datasheet | SRN3012BTA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 610mA | Shielded | 1.32Ohm Max | 10 @ 1MHz | 23MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
RLB0812-102KLFIXED IND 1MH 120MA 3.9 OHM TH |
60,105 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 120 mA | - | Unshielded | 3.9Ohm Max | 45 @ 252kHz | 1.4MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
RLB0812-223KLFIXED IND 22MH 25MA 92 OHM TH |
5,539 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 25 mA | - | Unshielded | 92Ohm Max | 60 @ 79.6kHz | 240kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
RLB0608-222KLFIXED IND 2.2MH 85MA 20 OHM TH |
3,588 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 85 mA | - | Unshielded | 20Ohm Max | 50 @ 252kHz | 1MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
RLB0812-472KLFIXED IND 4.7MH 50MA 16 OHM TH |
3,042 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 50 mA | - | Unshielded | 16Ohm Max | 60 @ 252kHz | 500kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
RLB0608-221KLFIXED IND 220UH 200MA 2.5 OHM TH |
2,643 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 200 mA | - | Unshielded | 2.5Ohm Max | 45 @ 796kHz | 3.8MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
RLB0812-473KLFIXED IND 47MH 16MA 162 OHM TH |
2,168 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 16 mA | - | Unshielded | 162Ohm Max | 60 @ 79.6kHz | 100kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
