Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW100505-68NJFIXED IND 68NH 180MA 1.12OHM SMD |
23,675 |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 180 mA | - | Unshielded | 1.12Ohm | 22 @ 200MHz | 1.62GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
RLB0812-103KLFIXED IND 10MH 34MA 39 OHM TH |
23,064 |
|
Datasheet | RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 34 mA | - | Unshielded | 39Ohm Max | 60 @ 79.6kHz | 360kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
CW100505-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
19,426 |
|
Datasheet | CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm | 20 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
CW201212-R47JFIXED IND 470NH 250MA 1.72OHM SM |
55,635 |
|
Datasheet | CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 250 mA | - | Unshielded | 1.72Ohm | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW201212-R33JFIXED IND 330NH 200MA 1.65OHM SM |
3,413 |
|
Datasheet | CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 200 mA | - | Unshielded | 1.65Ohm | 45 @ 250MHz | 800MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|

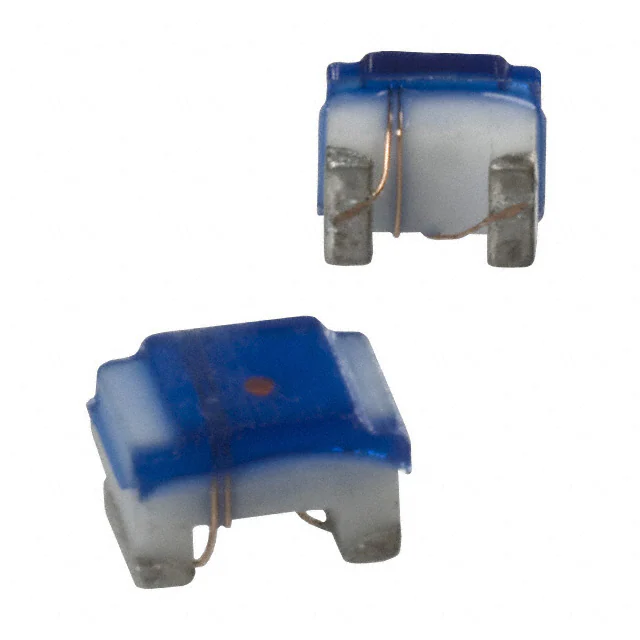

PM0805-22NM-RCFIXED IND 22NH 600MA 100MOHM SMD |
5,336 |
|
Datasheet | PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 22 nH | ±20% | 600 mA | - | Unshielded | 100mOhm | 60 @ 500MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
CM453232-221KLFIXED IND 220UH 100MA 10 OHM SMD |
266,511 |
|
Datasheet | CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN2512-1R0MFIXED IND 1UH 3.5A 57 MOHM SMD |
35,490 |
|
Datasheet | SRN2512 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.5 A | 3.9A | Shielded | 57mOhm Max | 10 @ 1MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CM453232-101KLFIXED IND 100UH 110MA 8 OHM SMD |
23,502 |
|
Datasheet | CM45 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SRN4012T-100MFIXED IND 10UH 1.1A 180 MOHM SMD |
23,220 |
|
Datasheet | SRN4012T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 800mA | Shielded | 180mOhm | 10 @ 100kHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
