Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

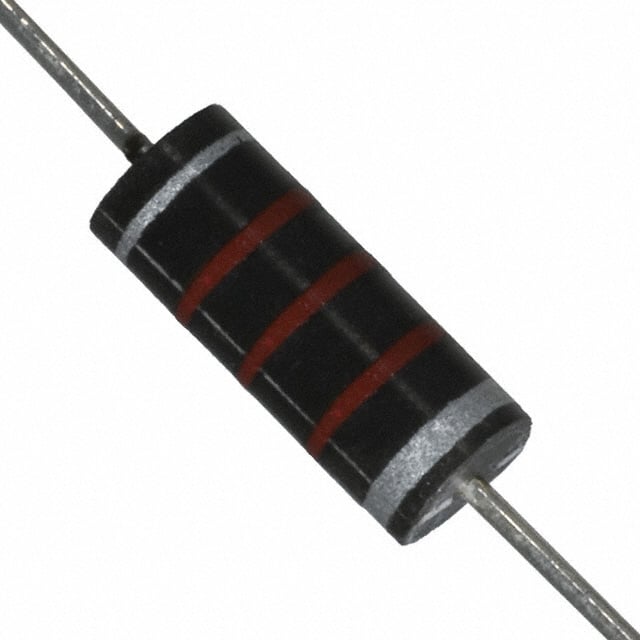

9250A-225-RCFIXED IND 2.2MH 50MA 33.8 OHM TH |
288 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 2.2 mH | ±10% | 50 mA | 27mA | Shielded | 33.8Ohm Max | 45 @ 250kHz | 970kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-275-RCFIXED IND 2.7MH 40MA 47.3 OHM TH |
183 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 2.7 mH | ±10% | 40 mA | 25mA | Shielded | 47.3Ohm Max | 45 @ 250kHz | 920kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

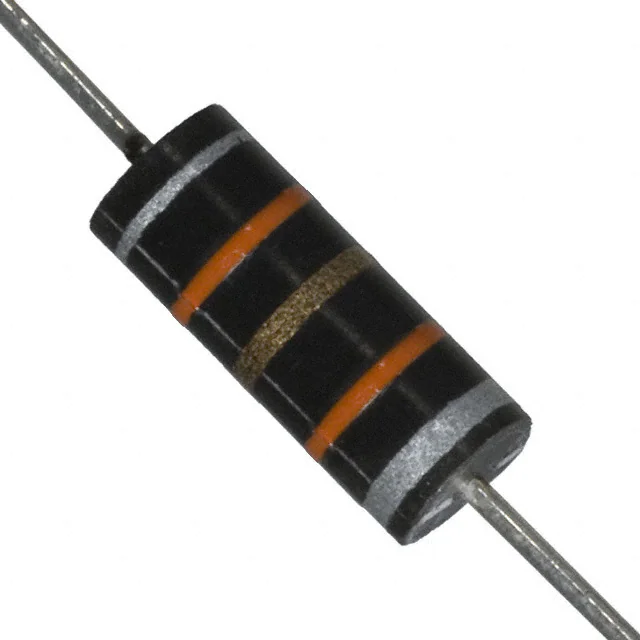

9250A-332-RCFIXED IND 3.3UH 480MA 350MOHM TH |
126 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 3.3 µH | ±10% | 480 mA | 480mA | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5900-393-RCFIXED IND 39MH 120MA 31 OHM TH |
1,179 |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 120 mA | 130mA | Unshielded | 31Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-562-RCFIXED IND 5.6MH 320MA 4.1 OHM TH |
1,030 |
|
Datasheet | 5900 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 320 mA | 350mA | Unshielded | 4.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
PM7232S-1R5M-RCFIXED IND 1.5UH 9A 15 MOHM SMD |
3,847 |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1.5 µH | ±20% | 9 A | 14A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PM7232S-R47M-RCFIXED IND 470NH 17.5A 4.2MOHM SM |
1,290 |
|
Datasheet | PM7232S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.126" (3.20mm) |
|
PM12651S-4R7M-RCFIXED IND 4.7UH 12A 15 MOHM SMD |
2,399 |
|
Datasheet | PM12651S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 4.7 µH | ±20% | 12 A | 27A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
|
PM12645S-2R7M-RCFIXED IND 2.7UH 17A 7.3 MOHM SMD |
1,500 |
|
Datasheet | PM12645S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 2.7 µH | ±20% | 17 A | 32A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
4604-RCFIXED IND 1.5UH 1.8A 93 MOHM TH |
2,618 |
|
Datasheet | 4600 | Axial | Bulk | Active | Wirewound | Phenolic | 1.5 µH | ±10% | 1.8 A | - | Unshielded | 93mOhm Max | 58 @ 7.96MHz | 149MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
