Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

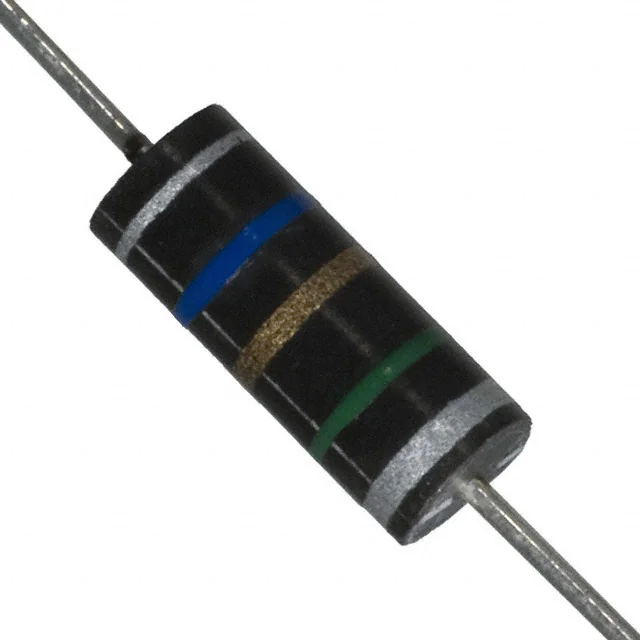

9250A-562-RCFIXED IND 5.6UH 335MA 720MOHM TH |
744 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 5.6 µH | ±10% | 335 mA | 335mA | Shielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
8230-16-RCFIXED IND 680NH 450MA 600MOHM TH |
716 |
|
Datasheet | 8230 | Axial | Bulk | Active | Wirewound | Phenolic | 680 nH | ±10% | 450 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-44-RCFIXED IND 10UH 180MA 3.7 OHM TH |
695 |
|
Datasheet | 8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 180 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-22-RCFIXED IND 1.2UH 825MA 180MOHM TH |
677 |
|
Datasheet | 8230 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 825 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

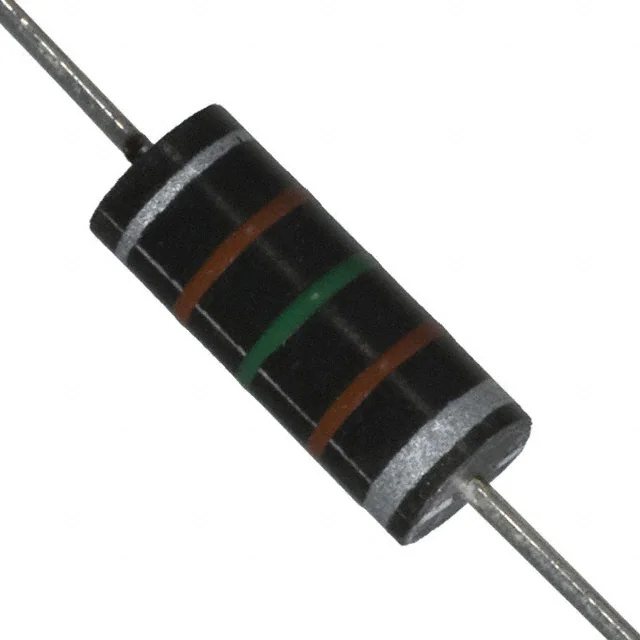

9250A-154-RCFIXED IND 150UH 140MA 4.1 OHM TH |
560 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 150 µH | ±10% | 140 mA | 90mA | Shielded | 4.1Ohm Max | 55 @ 790kHz | 8.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

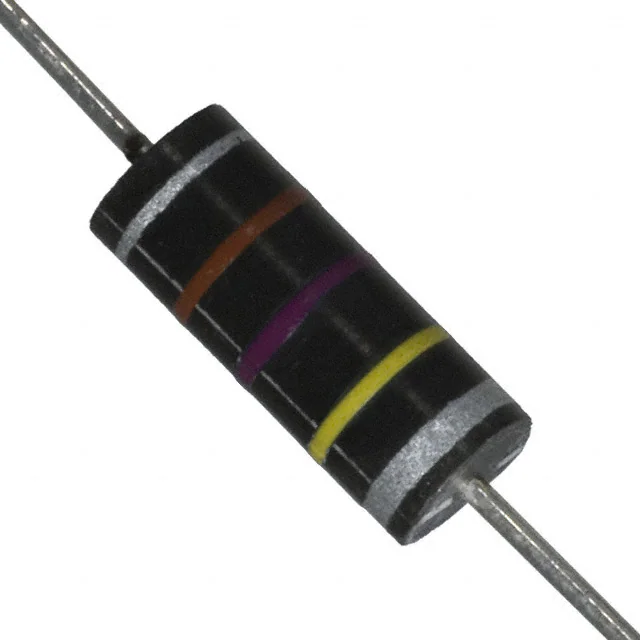

9250A-474-RCFIXED IND 470UH 92MA 9.5 OHM TH |
522 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 470 µH | ±10% | 92 mA | 58mA | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-393-RCFIXED IND 39UH 205MA 1.93 OHM TH |
511 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 39 µH | ±10% | 205 mA | 180mA | Shielded | 1.93Ohm Max | 50 @ 2.5MHz | 29MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-825-RCFIXED IND 8.2MH 26MA 119 OHM TH |
501 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 8.2 mH | ±10% | 26 mA | 15mA | Shielded | 119Ohm Max | 40 @ 250kHz | 540kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
8230-08-RCFIXED IND 330NH 780MA 200MOHM TH |
464 |
|
Datasheet | 8230 | Axial | Bulk | Active | Wirewound | Phenolic | 330 nH | ±10% | 780 mA | - | Unshielded | 200mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
9250A-181-RCFIXED IND 180NH 1.3A 47 MOHM TH |
398 |
|
Datasheet | 9250A | Axial | Bulk | Active | Molded | Ferrite | 180 nH | ±10% | 1.3 A | 1.3A | Shielded | 47mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
