Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7843322000WE-CHSA SMT HIGH CURRENT INDUCTO |
1,314 |
|
Datasheet | WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 20 µH | ±20% | 5.4 A | 7A | Shielded | 43.1mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
744323120FIXED IND 1.2UH 12A 6.6 MOHM SMD |
3,079 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 12 A | 15A | Shielded | 6.6mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1030 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.122" (3.10mm) |
|

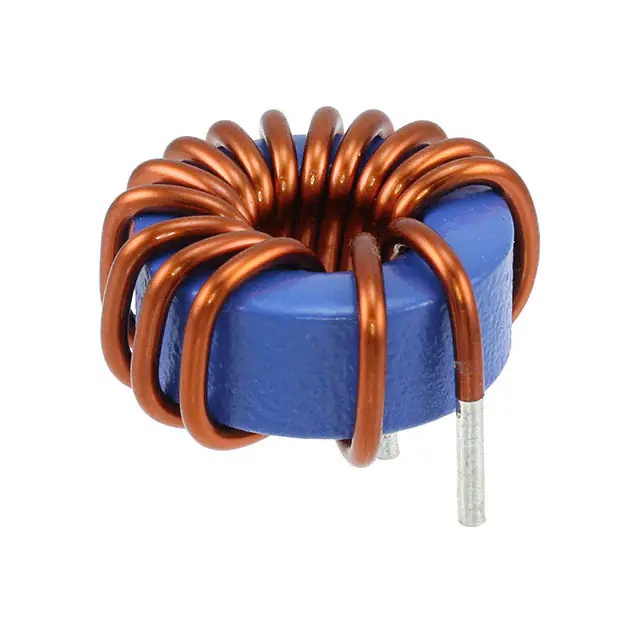

S14100034FIXED IND 22UH 18A 4.5 MOHM TH |
2,596 |
|
Datasheet | WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 22 µH | ±20% | 18 A | - | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.378" Dia (35.00mm) | 0.689" (17.50mm) |
|

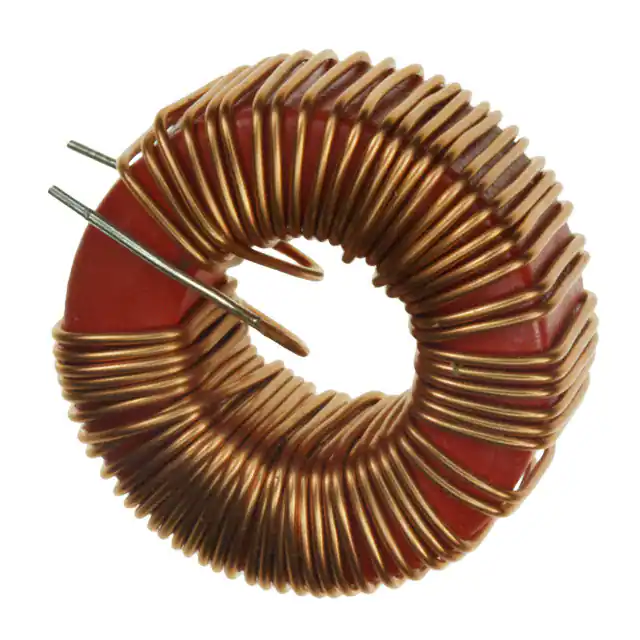

744136FIXED IND 346UH 3.8A 140 MOHM TH |
3,220 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 346 µH | ±20% | 3.8 A | 1.5A | Unshielded | 140mOhm Max | - | 3.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|

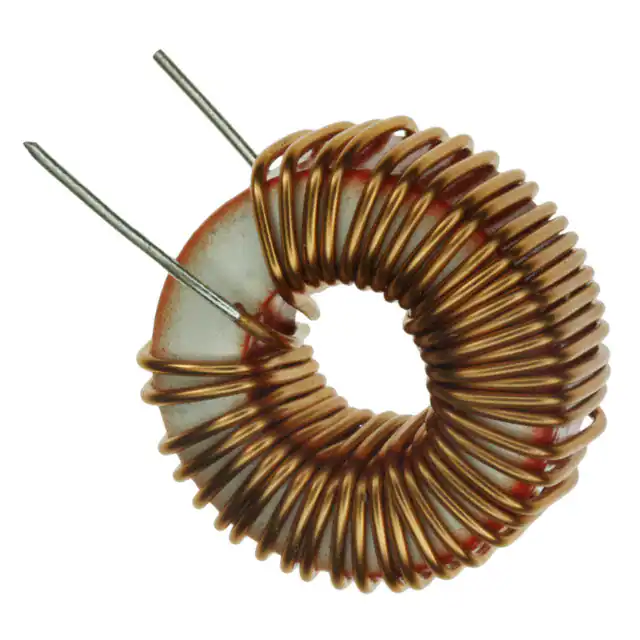

744137FIXED IND 630UH 3.1A 175 MOHM TH |
1,446 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 630 µH | ±20% | 3.1 A | 1A | Unshielded | 175mOhm Max | - | 1.5MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.220" Dia x 0.591" W (31.00mm x 15.00mm) | - |
|
|
744118FIXED IND 600UH 2.2A 330 MOHM TH |
3,167 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 600 µH | ±20% | 2.2 A | 1.1A | Unshielded | 330mOhm Max | - | 1.3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.551" W (30.00mm x 14.00mm) | - |
|
7443782012100FIXED IND 10UH 20.6A 5 MOHM TH |
2,196 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 20.6 A | 20.6A | Shielded | 5mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|

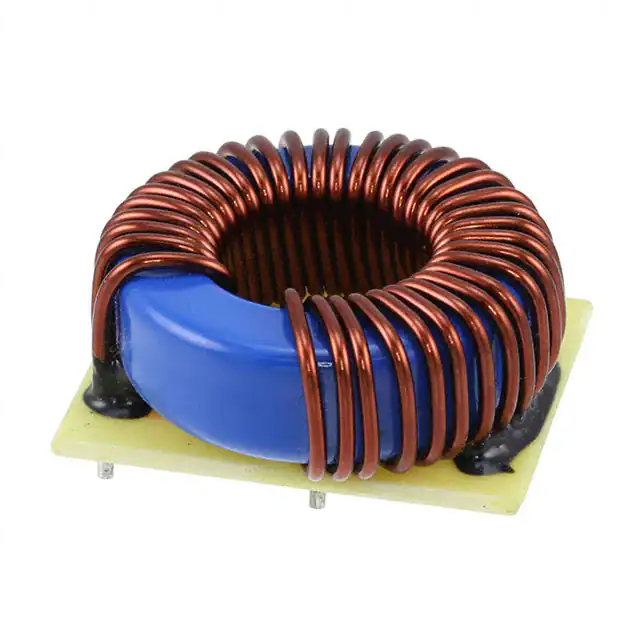

S14100032FIXED IND 150UH 10A 21 MOHM TH |
3,467 |
|
Datasheet | WE-LCB | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 10 A | - | Unshielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.516" L x 1.496" W (38.50mm x 38.00mm) | 0.709" (18.00mm) |
|
7444013119220FIXED IND 22UH 10A 5.3 MOHM TH |
3,904 |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 22 µH | ±20% | 10 A | 33A | Unshielded | 5.3mOhm | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
|
|
7444013119082FIXED IND 8.2UH 19A 2.5 MOHM TH |
2,825 |
|
Datasheet | WE-HIDA | Nonstandard | Tray | Active | - | - | 8.2 µH | ±20% | 19 A | 52A | Unshielded | 2.5mOhm | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.378" (35.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
