Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7441501FIXED IND 12UH 14.5A 8 MOHM TH |
3,656 |
|
Datasheet | WE-SI | Radial | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±20% | 14.5 A | 6.9A | Unshielded | 8mOhm Max | - | 44.6MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - |
|

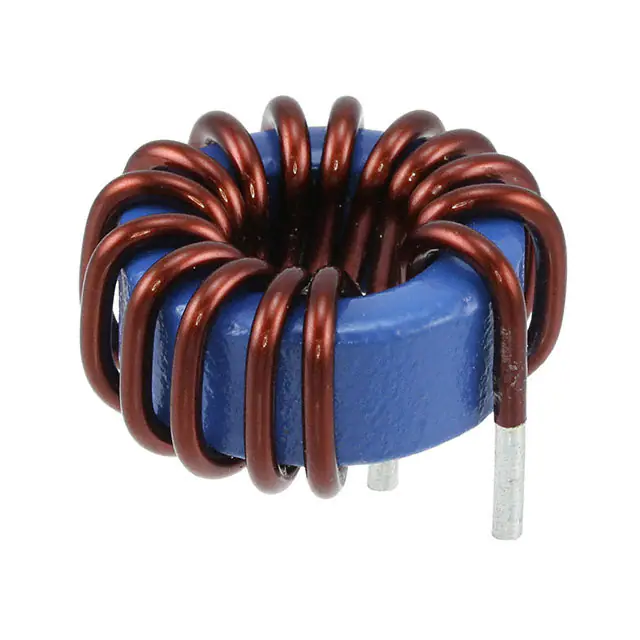

S14100033FIXED IND 15UH 15A 5 MOHM TH |
1,456 |
|
Datasheet | WE-FI | Radial, Horizontal (Open) | Tray | Active | Toroidal | Ferrite | 15 µH | ±20% | 15 A | - | Unshielded | 5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.181" Dia (30.00mm) | 0.630" (16.00mm) |
|
7447798250FIXED IND 2.5UH 13.7A 4.95 MOHM |
1,817 |
|
Datasheet | WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 2.5 µH | ±30% | 13.7 A | 10.1A | Shielded | 4.95mOhm Max | - | 57MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
744152FIXED IND 82UH 7.7A 30 MOHM TH |
1,950 |
|
Datasheet | WE-SI | Radial, Vertical Cylinder (Open) | Bag | Active | Toroidal | Iron Powder | 82 µH | ±20% | 7.7 A | 1.7A | Unshielded | 30mOhm Max | - | 5.4MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.102" Dia x 0.472" W (28.00mm x 12.00mm) | - |
|
7443782012068FIXED IND 6.8UH 20.6A 5 MOHM TH |
4,901 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 20.6 A | 30.6A | Shielded | 5mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7443782012047FIXED IND 4.7UH 28.7A 2.4MOHM TH |
3,299 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 4.7 µH | ±20% | 28.7 A | 29.8A | Shielded | 2.4mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
7443782012150FIXED IND 15UH 20.6A 5 MOHM TH |
1,344 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 15 µH | ±20% | 20.6 A | 12.9A | Shielded | 5mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.866" L x 0.669" W (22.00mm x 17.00mm) | 0.531" (13.50mm) |
|
78439370100WE-XHMA SMT POWER INDUCTOR 1510; |
2,689 |
|
Datasheet | WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 11.5 A | 31.2A | Shielded | 6.4mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
|
78439370220WE-XHMA SMT POWER INDUCTOR 1510; |
3,856 |
|
Datasheet | WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 8 A | 22.35A | Shielded | 12.5mOhm | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.646" L x 0.606" W (16.40mm x 15.40mm) | 0.394" (10.00mm) |
|
7443762504022FIXED IND 2.2UH 30A 1.96 MOHM TH |
4,991 |
|
Datasheet | WE-HCFT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±20% | 30 A | - | Shielded | 1.96mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.992" L x 0.866" W (25.20mm x 22.00mm) | 0.161" (4.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
