Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
768776312FIXED IND 1.2MH 350MA 3 OHM SMD |
2,213 |
|
Datasheet | WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 350 mA | 350mA | Unshielded | 3Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|

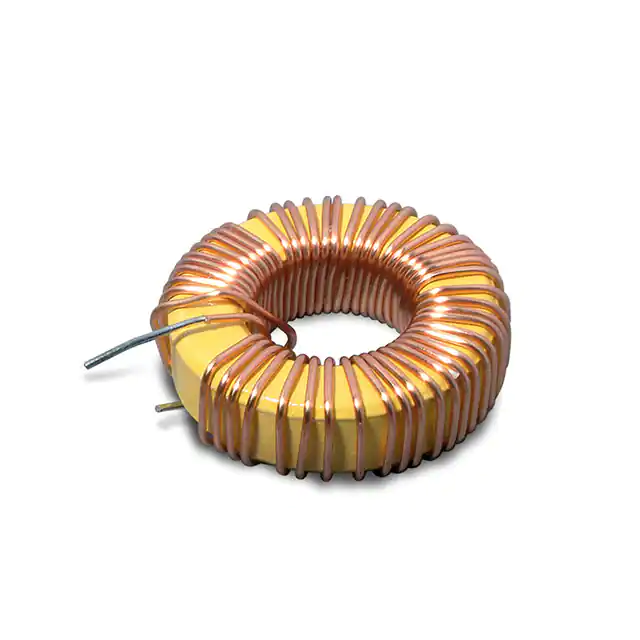

744132FIXED IND 49UH 5.8A 50 MOHM TH |
100 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 49 µH | ±20% | 5.8 A | 2.2A | Shielded | 50mOhm Max | - | 16MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.827" Dia x 0.374" W (21.00mm x 9.50mm) | - |
|
7447471222FIXED IND 2.2MH 400MA 2.7 OHM TH |
4,621 |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 400 mA | 300mA | Shielded | 2.7Ohm Max | - | 780kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471022FIXED IND 2.2UH 8.2A 8.8 MOHM TH |
4,459 |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 8.2 A | 10A | Shielded | 8.8mOhm Max | - | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471047FIXED IND 4.7UH 6.9A 12.2MOHM TH |
4,438 |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.9 A | 6A | Shielded | 12.2mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7447786008FIXED IND 8.2UH 2.3A 80 MOHM SMD |
1,337 |
|
Datasheet | WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±25% | 2.3 A | 2.1A | Shielded | 80mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
744114FIXED IND 127UH 2.3A 120 MOHM TH |
3,311 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 127 µH | ±20% | 2.3 A | 1A | Unshielded | 120mOhm Max | - | 4.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.709" Dia x 0.354" W (18.00mm x 9.00mm) | - |
|
744105FIXED IND 258UH 1.2A 400 MOHM TH |
3,383 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 258 µH | ±20% | 1.2 A | 600mA | Unshielded | 400mOhm Max | - | 3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
744151FIXED IND 48UH 8.1A 25 MOHM TH |
1,247 |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 48 µH | ±20% | 8.1 A | 3A | Shielded | 25mOhm Max | - | 13.6MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" Dia x 0.472" W (30.00mm x 12.00mm) | - |
|
744373965068FIXED IND 6.8UH 9.5A 0.0116OHM |
1,249 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 6.8 µH | ±20% | 9.5 A | 28.9A | Shielded | 11.6mOhm Max | - | 11.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1365 | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
