Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744914143FIXED IND 43NH 4A 7.9 MOHM SMD |
892 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 43 nH | ±5% | 4 A | - | Unshielded | 7.9mOhm Max | 106 @ 150MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
744911112FIXED IND 12.55NH 1.6A 14MOHM SM |
767 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.55 nH | ±5% | 1.6 A | - | Unshielded | 14mOhm Max | 100 @ 800MHz | 4.6GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|

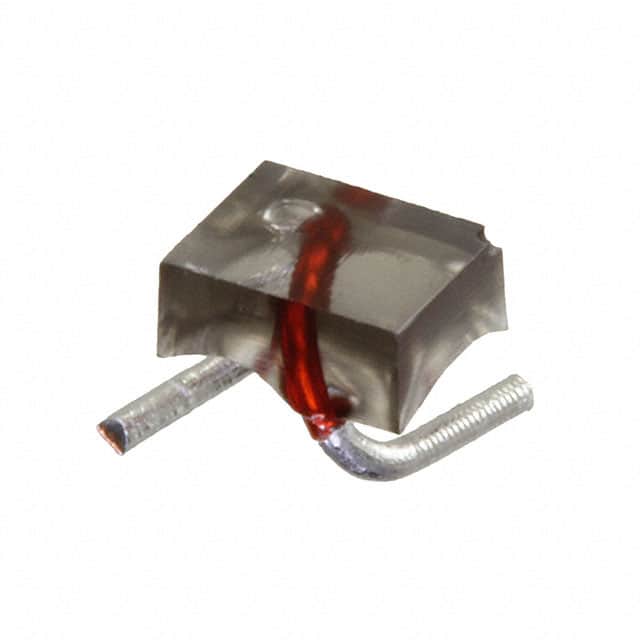

744913025FIXED IND 2.5NH 4A 1.1 MOHM SMD |
500 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.5 nH | ±5% | 4 A | - | Unshielded | 1.1mOhm Max | 140 @ 150MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
744910038FIXED IND 3.85NH 1.6A 6 MOHM SMD |
458 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 3.85 nH | ±5% | 1.6 A | - | Unshielded | 6mOhm Max | 100 @ 800MHz | 7.5GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|

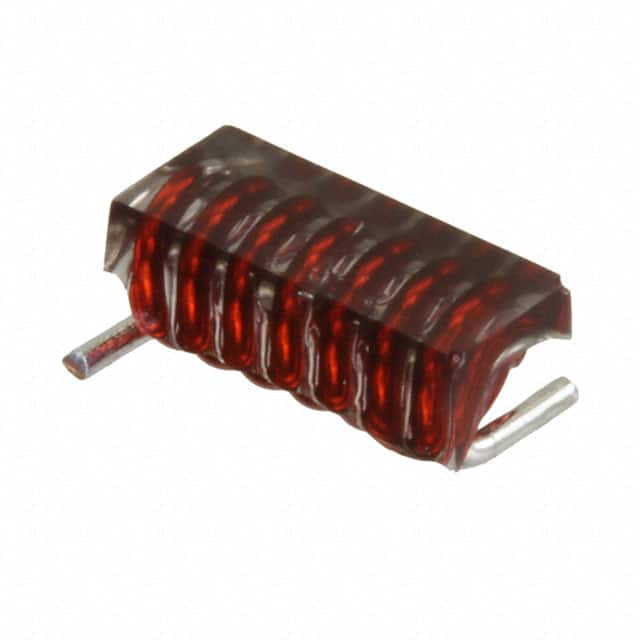

744914122FIXED IND 22NH 4A 5.2 MOHM SMD |
368 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 4 A | - | Unshielded | 5.2mOhm Max | 102 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
744913080FIXED IND 8NH 4A 2.6 MOHM SMD |
3,265 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±5% | 4 A | - | Unshielded | 2.6mOhm Max | 140 @ 150MHz | 5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
744914128FIXED IND 28NH 4A 6 MOHM SMD |
3,579 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 28 nH | ±5% | 4 A | - | Unshielded | 6mOhm Max | 105 @ 150MHz | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|

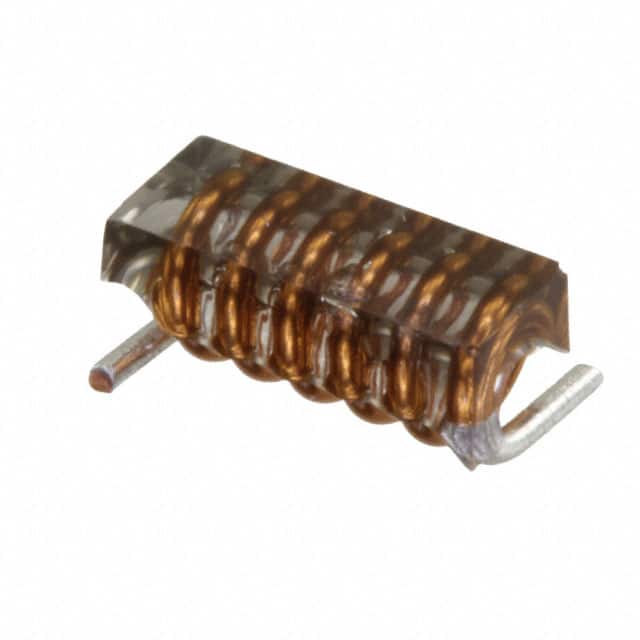

744914117FIXED IND 17.5NH 4A 4.5 MOHM SMD |
2,515 |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 17.5 nH | ±5% | 4 A | - | Unshielded | 4.5mOhm Max | 100 @ 150MHz | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
7447462152FIXED IND 1.5MH 190MA 8 OHM TH |
523 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 190 mA | 200mA | Unshielded | 8Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462047FIXED IND 4.7UH 4.2A 30 MOHM TH |
488 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 3.7A | Unshielded | 30mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
