Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

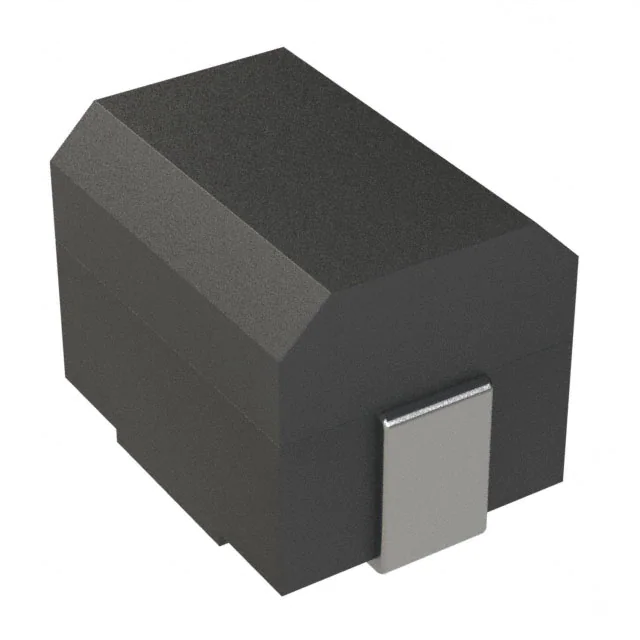

744766220FIXED IND 220UH 100MA 10 OHM SMD |
980 |
|
Datasheet | WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
74476601FIXED IND 1UH 450MA 500 MOHM SMD |
806 |
|
Datasheet | WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 275MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
7447720680FIXED IND 68UH 1.8A 160 MOHM TH |
208 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 µH | ±10% | 1.8 A | 1.9A | Unshielded | 160mOhm Max | - | 6.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447722473FIXED IND 47MH 60MA 112 OHM TH |
204 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 mH | ±5% | 60 mA | 70mA | Unshielded | 112Ohm Max | - | 220kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.394" (10.00mm) |
|
|
7447720047FIXED IND 4.7UH 4.5A 30 MOHM TH |
181 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 4.5 A | 7.2A | Unshielded | 30mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720221FIXED IND 220UH 1A 450 MOHM TH |
155 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 1 A | 1A | Unshielded | 450mOhm Max | - | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720472FIXED IND 4.7MH 210MA 9.5 OHM TH |
131 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 210 mA | 240mA | Unshielded | 9.5Ohm Max | - | 830kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720331FIXED IND 330UH 820MA 700MOHM TH |
106 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 330 µH | ±10% | 820 mA | 880mA | Unshielded | 700mOhm Max | - | 3.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720471FIXED IND 470UH 660MA 970MOHM TH |
101 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 470 µH | ±10% | 660 mA | 730mA | Unshielded | 970mOhm Max | - | 2.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720101FIXED IND 100UH 1.3A 220 MOHM TH |
2,159 |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 1.3 A | 1.6A | Unshielded | 220mOhm Max | - | 6.1MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
