Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744314101FIXED IND 10UH 3.5A 33 MOHM SMD |
3,009 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 3.5 A | 4A | Shielded | 33mOhm | - | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|

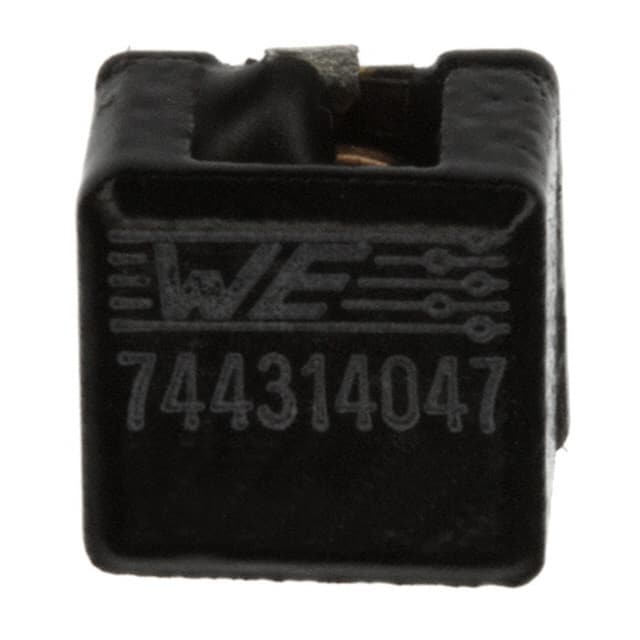

744314047FIXED IND 470NH 18A 1.35MOHM SMD |
1,969 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 18 A | 20A | Shielded | 1.35mOhm | - | 235MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
744314330FIXED IND 3.3UH 9A 9 MOHM SMD |
1,565 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 9 A | 8A | Shielded | 9mOhm | - | 65MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
744311100FIXED IND 1UH 15A 4.6 MOHM SMD |
1,205 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 15 A | 19A | Shielded | 4.6mOhm | - | 85MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|
74439346100FIXED IND 10UH 5A 26.5 MOHM SMD |
4,185 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5 A | 7.6A | Shielded | 26.5mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346047FIXED IND 4.7UH 7.4A 13MOHM SMD |
1,001 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.4 A | 14.7A | Shielded | 13mOhm | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
|
74439346068FIXED IND 6.8UH 6.5A 17.6MOHM SM |
696 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.5 A | 10A | Shielded | 17.6mOhm | - | 21.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
784325100WE-HCIA SMT FLAT WIRE HIGH CURRE |
746 |
|
Datasheet | WE-HCIA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7.2 A | 10.3A | Shielded | 23.1mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.394" W (10.50mm x 10.00mm) | 0.182" (4.63mm) |
|
744325120FIXED IND 1.2UH 20A 1.8 MOHM SMD |
6,851 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.2 µH | ±20% | 20 A | 25A | Shielded | 1.8mOhm | - | 75MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
|
|
7443251000FIXED IND 10UH 7.2A 16.3MOHM SMD |
5,987 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7.2 A | 8.5A | Shielded | 16.3mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1050 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.197" (5.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
