Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744316220FIXED IND 2.2UH 7.5A 11.3MOHM SM |
4,895 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.5 A | 7.5A | Shielded | 11.3mOhm | - | 108MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
74437336100FIXED IND 10UH 2.4A 0.128OHM SMD |
1,786 |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 2.4 A | 5.35A | Shielded | 128mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
744316033FIXED IND 330NH 18.5A 1.75 MOHM |
1,582 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 18.5 A | 20A | Shielded | 1.75mOhm | - | 402MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316047FIXED IND 470NH 15A 2.75MOHM SMD |
1,494 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 15 A | 16A | Shielded | 2.75mOhm | - | 280MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316100FIXED IND 1UH 11.5A 4.75MOHM SMD |
920 |
|
Datasheet | WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 11.5 A | 11.5A | Shielded | 4.75mOhm | - | 158MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
74439344033FIXED IND 3.3UH 6A 19.2MOHM SMD |
1,539 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6 A | 14.5A | Shielded | 19.2mOhm | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
74439344022FIXED IND 2.2UH 8A 10.5MOHM SMD |
919 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 8 A | 16A | Shielded | 10.5mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
74439344010FIXED IND 1UH 12A 5.5 MOHM SMD |
664 |
|
Datasheet | WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 12 A | 27.5A | Shielded | 5.5mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|

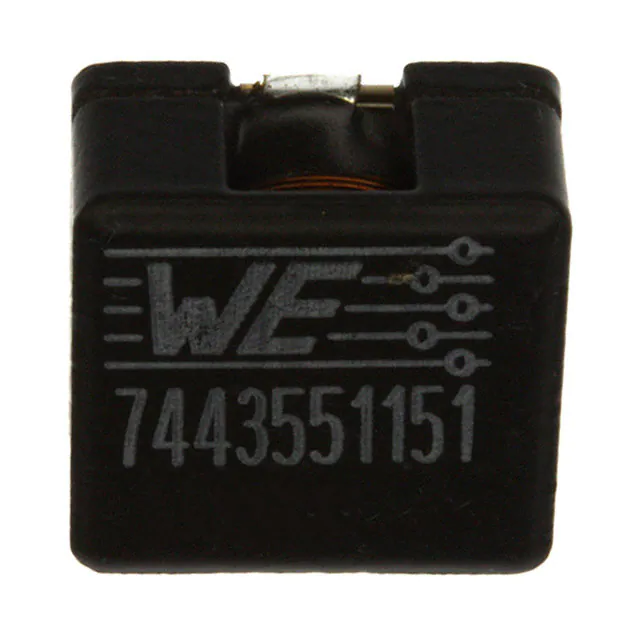

7443551151FIXED IND 15.4UH 9A 14.8MOHM SMD |
13,861 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15.4 µH | ±20% | 9 A | 8A | Shielded | 14.8mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
|
7443551181FIXED IND 18UH 7.5A 22 MOHM SMD |
3,763 |
|
Datasheet | WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 7.5 A | 7.5A | Shielded | 22mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1365 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.256" (6.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
