Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHA102BAFIXED IND 100UH 2.1A 160 MOHM TH |
329 |
|
Datasheet | IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | - | Unshielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - |
|
IHLE5050FHER2R2M5AIHLE-5050FH-5A 2.2 20% ER E3 |
734 |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 2.2 µH | ±20% | 25.5 A | 21.5A | Shielded | 3.67mOhm Max | - | 23.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
|
IHLE5050FHER6R8M5AIHLE-5050FH-5A 6.8 20% ER E3 |
680 |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 14.9 A | 14.1A | Shielded | 12.09mOhm Max | - | 13.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
IHLP6767GZERR82M11FIXED IND 820NH 56.5A 1.08 MOHM |
155 |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 56.5 A | 45A | Shielded | 1.08mOhm Max | - | 36MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHSM4825ER101LFIXED IND 100UH 730MA 672MOHM SM |
834 |
|
Datasheet | IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 730 mA | 500mA | Unshielded | 672mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|

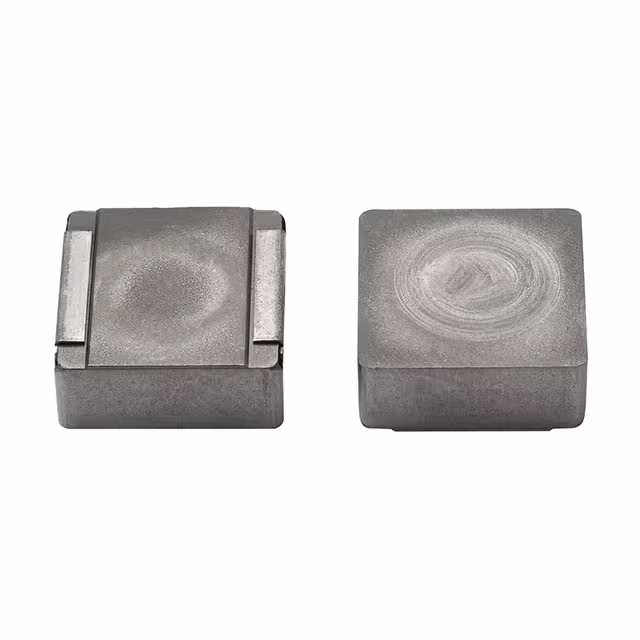

IHLP6767GZER330M5AIHLP-6767GZ-5A 33 20% ER E3 |
7,413 |
|
Datasheet | IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 8.8 A | 9.4A | Shielded | 38.9mOhm Max | - | 4.43MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER1R5M11FIXED IND 1.5UH 48A 1.62MOHM SMD |
227 |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 48 A | 31A | Shielded | 1.62mOhm Max | - | 26MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER220M1AIHLP-6767GZ-1A 22 20% ER E3 |
158 |
|
Datasheet | IHLP-6767GZ-1A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 12 A | 9.5A | Shielded | 21mOhm Max | - | 4.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHLP6767GZER220M8AFIXED IND 22UH 11.7A 22.27 MOHM |
277 |
|
Datasheet | IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 11.7 A | 11A | Shielded | 22.27mOhm Max | - | 5.97MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHD3EB152LFIXED IND 1.5MH 600MA 1.18OHM TH |
190 |
|
Datasheet | IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±15% | 600 mA | 460mA | Unshielded | 1.18Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
