Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLD2525GGER150M5AFIXED IND 15UH 3.2A 95.8MOHM SMD |
317 |
|
Datasheet | IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.2 A | 3A | Shielded | 95.8mOhm Max | - | 15.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
|
IHLD2525GGER100M5AFIXED IND 10UH 4.1A 66.34MOHM SM |
151 |
|
Datasheet | IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.1 A | 3.6A | Shielded | 66.34mOhm Max | - | 16.6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
|
IHLD2525GGER220M5AFIXED IND 22UH 2.2A 164.8MOHM SM |
132 |
|
Datasheet | IHLD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 2.2 A | 2.5A | Shielded | 164.8mOhm Max | - | 10.9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.307" L x 0.286" W (7.80mm x 7.26mm) | 0.301" (7.65mm) |
|
IHLD4032KBER330M5AFIXED IND 33UH 3.8A 107MOHM SMD |
284 |
|
Datasheet | IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 3.8 A | 3.7A | Shielded | 107mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.379" W (11.90mm x 9.62mm) | 0.441" (11.20mm) |
|
IHLD3232HBER220M5AFIXED IND 22UH 3.3A 110.21 MOHM |
512 |
|
Datasheet | IHLD-5A | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.3 A | 2.9A | Shielded | 110.21mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.365" (9.27mm) |
|
IHLE5050FHER150M5AIHLE-5050FH-5A 15 20% ER E3 |
329 |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 10.1 A | 7.7A | Shielded | 25.68mOhm Max | - | 8.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
IHLP6767DZER6R8M01FIXED IND 6.8UH 13.2A 16MOHM SMD |
163 |
|
Datasheet | IHLP-6767DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 13.2 A | 21A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.157" (4.00mm) |
|

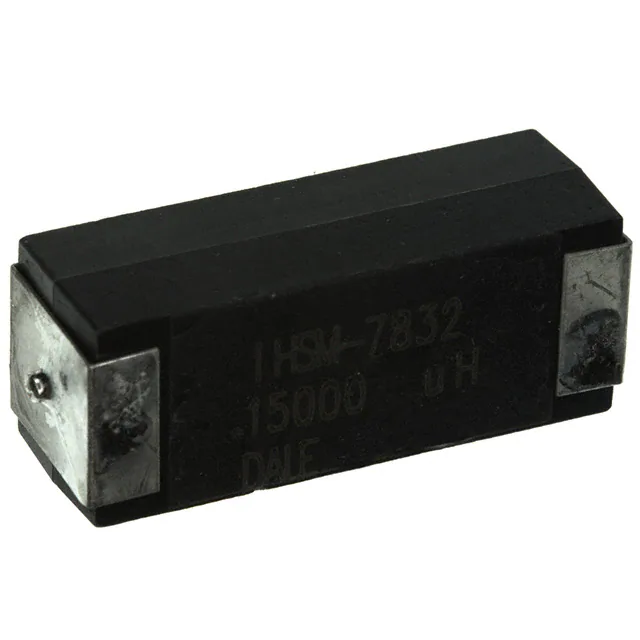

IHSM7832ER101LFIXED IND 100UH 1.7A 226MOHM SMD |
2,260 |
|
Datasheet | IHSM-7832 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 1.7 A | 680mA | Unshielded | 226mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.840" L x 0.320" W (21.34mm x 8.13mm) | 0.285" (7.24mm) |
|
IHLE5050FHER3R3M5AFIXED IND 3.3UH 20.2A 5.44 MOHM |
235 |
|
Datasheet | IHLE-5050FH-5A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 20.2 A | 16.7A | Shielded | 5.44mOhm Max | - | 17.8MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.268" (6.80mm) |
|
IHA102EBFIXED IND 100UH 2.1A 160 MOHM TH |
218 |
|
Datasheet | IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.1 A | - | Unshielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
