Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP3232DZER4R7M01FIXED IND 4.7UH 7.25A 32MOHM SMD |
1,568 |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 7.25 A | 15A | Shielded | 32mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
IHLP4040DZER1R8M11FIXED IND 1.8UH 17A 5 MOHM SMD |
3,391 |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 17 A | 16A | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER6R8M11FIXED IND 6.8UH 7A 33.4 MOHM SMD |
2,313 |
|
Datasheet | IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 7 A | 6.7A | Shielded | 33.4mOhm Max | - | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER330M8AFIXED IND 33UH 3.7A 117.7MOHM SM |
5,433 |
|
Datasheet | IHLP-4040DZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.7 A | 4.2A | Shielded | 117.7mOhm Max | - | 5.79MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER2R0M11FIXED IND 2UH 16A 5.8 MOHM SMD |
2,721 |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2 µH | ±20% | 16 A | 14A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLP3232CZER100M11FIXED IND 10UH 5.3A 55.1MOHM SMD |
1,277 |
|
Datasheet | IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.3 A | 3.8A | Shielded | 55.1mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
|
IHLP4040DZER330M11FIXED IND 33UH 4.4A 94.5MOHM SMD |
915 |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 4.4 A | 4A | Shielded | 94.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER1R5M01FIXED IND 1.5UH 15A 5.8 MOHM SMD |
1,744 |
|
Datasheet | IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 15 A | 27.5A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

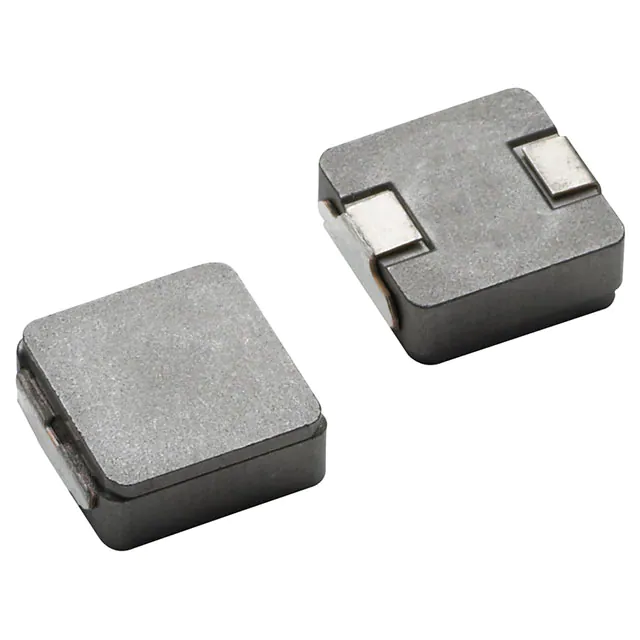

IHLP4040DZER680M5AIHLP-4040DZ-5A 68 20% ER E3 |
5,944 |
|
Datasheet | IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 2.4 A | 3.5A | Shielded | 252mOhm Max | - | 4.02MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLE2020CDER4R7M5AIHLE-2020CD-5A 4.7 20% ER E3 |
5,814 |
|
Datasheet | IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 6A | Shielded | 78.3mOhm Max | - | 23.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
