Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP4040DZER100M11FIXED IND 10UH 7.5A 30.5MOHM SMD |
5,428 |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 7.5 A | 7.1A | Shielded | 30.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

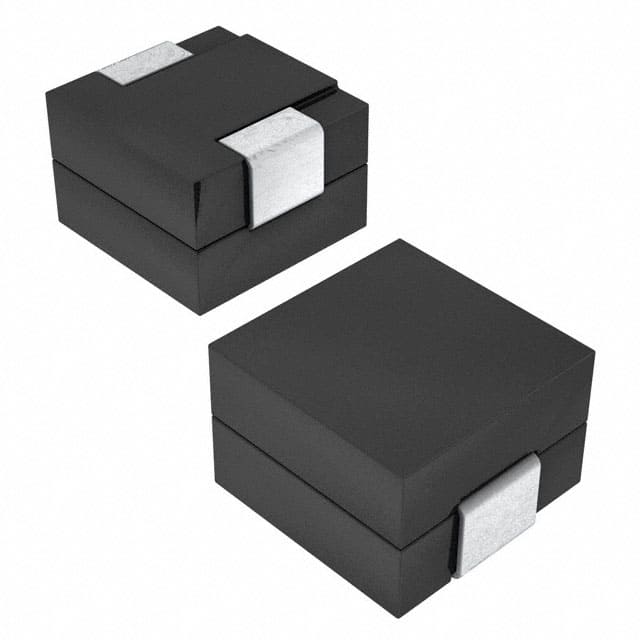

IFLR5151HZERR32M01FIXED IND 320NH 50A 0.35MOHM SMD |
2,846 |
|
Datasheet | IFLR-5151HZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 320 nH | ±20% | 50 A | 50A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.315" (8.00mm) |
|
IHLP3232DZER2R2M01FIXED IND 2.2UH 10.5A 13.7 MOHM |
2,031 |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 10.5 A | 23A | Shielded | 13.7mOhm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER4R7M11FIXED IND 4.7UH 8A 22.6 MOHM SMD |
2,856 |
|
Datasheet | IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 8 A | 8.7A | Shielded | 22.6mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER101M11FIXED IND 100UH 2.5A 270MOHM SMD |
2,822 |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 2.5 A | 2.25A | Shielded | 270mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER5R6M11FIXED IND 5.6UH 7.4A 28.6MOHM SM |
2,552 |
|
Datasheet | IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 7.4 A | 7.6A | Shielded | 28.6mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER100M01FIXED IND 10UH 5.2A 59.9MOHM SMD |
532 |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.2 A | 9A | Shielded | 59.9mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP4040DZER2R2M01FIXED IND 2.2UH 12A 9 MOHM SMD |
509 |
|
Datasheet | IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 12 A | 25.6A | Shielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLP4040DZERR56M01FIXED IND 560NH 27.5A 1.95 MOHM |
2,234 |
|
Datasheet | IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 27.5 A | 49A | Shielded | 1.95mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZERR82M01FIXED IND 820NH 19A 4.42MOHM SMD |
1,651 |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 19 A | 24.2A | Shielded | 4.42mOhm Max | - | 53MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
