Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC3525ER-231K06E-00CHOKE COMMON MODE |
2,568 |
|
Datasheet | PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 225 µH | ±10% | 5.6 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.083" W (37.00mm x 27.50mm) | 1.063" (27.00mm) |
|
|
PFC3525ER-181K09B-00CHOKE COMMON MODE |
1,680 |
|
Datasheet | PFC | Radial, Horizontal, 6 Leads | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 9.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.083" W (37.00mm x 27.50mm) | 1.063" (27.00mm) |
|
PFC3819QM-301K06E-00CHOKE COMMON MODE |
4,929 |
|
Datasheet | PFC | Radial, Horizontal, 8 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.575" L x 1.319" W (40.00mm x 33.50mm) | 0.827" (21.00mm) |
|

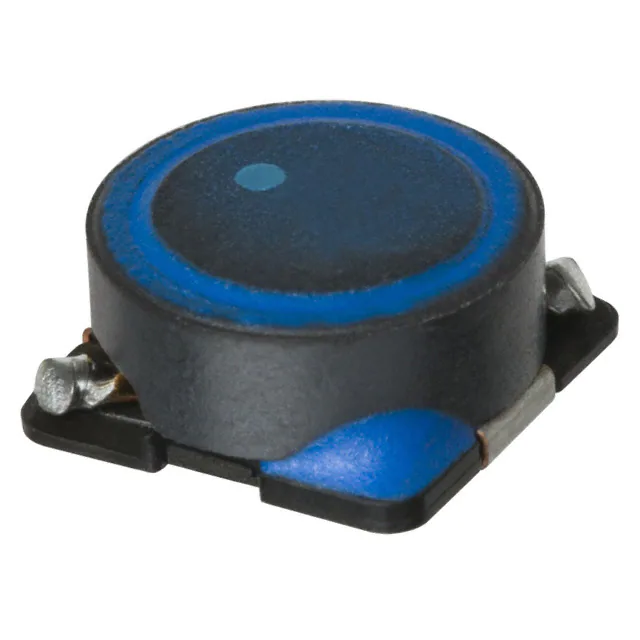

SLF10145T-100M2R5FIXED IND 10UH 2.5A 43.7MOHM SMD |
3,885 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 3A | Shielded | 43.7mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-150M2R2FIXED IND 15UH 2.2A 56.6MOHM SMD |
4,731 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.4A | Shielded | 56.6mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-220M1R9FIXED IND 22UH 1.9A 59.1MOHM SMD |
3,003 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.1A | Shielded | 59.1mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-330M1R6FIXED IND 33UH 1.7A 97.8MOHM SMD |
3,821 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 1.6A | Shielded | 97.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-470M1R4FIXED IND 47UH 1.5A 120 MOHM SMD |
1,097 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 1.4A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-680M1R2FIXED IND 68UH 1.3A 168 MOHM SMD |
1,024 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.2A | Shielded | 168mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SLF10145T-101M1R0FIXED IND 100UH 1.1A 240MOHM SMD |
4,829 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.1 A | 1A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
