Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLF12560T-100M7R5FIXED IND 10UH 7.8A 14.88MOHM SM |
1,955 |
|
Datasheet | RLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 7.8 A | 7.5A | Shielded | 14.88mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.492" W (12.80mm x 12.50mm) | 0.236" (6.00mm) |
|
RLF7045T-680MR85-DFIXED IND 68UH 850MA 340.8 MOHM |
1,709 |
|
Datasheet | RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 850 mA | 850mA | Shielded | 340.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|
|
RLF7045T-100M1R9-DFIXED IND 10UH 1.9A 60 MOHM SMD |
2,587 |
|
Datasheet | RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.189" (4.80mm) |
|

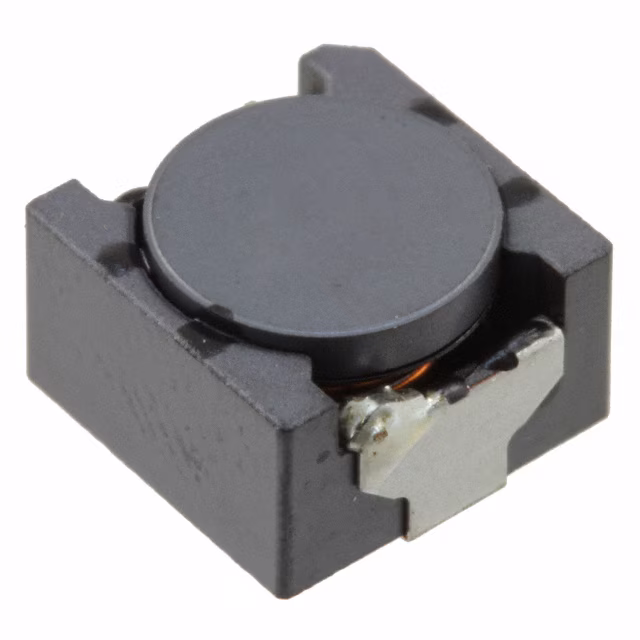

RLF10160T-470M1R5-DFIXED IND 47UH 1.5A 111.6MOHM SM |
2,054 |
|
Datasheet | RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.5 A | 2.4A | Shielded | 111.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.252" (6.40mm) |
|
|
RLF10160T-221MR70-DFIXED IND 220UH 700MA 490.8 MOHM |
4,111 |
|
Datasheet | RLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 700 mA | 1A | Shielded | 490.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.252" (6.40mm) |
|
VLM13580T-R82M-D1FIXED IND 820NH 12.6A 2 MOHM SMD |
4,551 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 12.6 A | 36A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|
|
VLM13580T-1R5M-D1FIXED IND 1.5UH 11.3A 2.5MOHM SM |
2,080 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 11.3 A | 26A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|
|
VLM13580T-3R3M-D1FIXED IND 3.3UH 8.4A 4.5MOHM SMD |
3,748 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 8.4 A | 18A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.480" W (13.50mm x 12.20mm) | 0.327" (8.30mm) |
|
LGJ7045TC-101M-HFIXED IND 100UH 750MA 330MOHM SM |
3,583 |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 750 mA | 900mA | Shielded | 330mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
VLM10555T-R33M180-3FIXED IND 330NH 18A 1.2 MOHM SMD |
3,189 |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 18 A | 34A | Shielded | 1.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
