Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
104CDMCCDS-R22MCFIXED IND 220NH 38A 1 MOHM SMD |
475 |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 38 A | 70A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

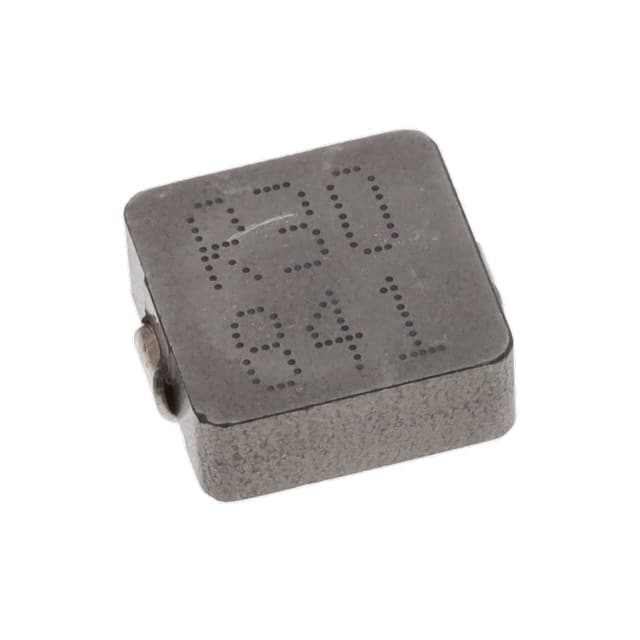

104CDMCCDS-R30MCFIXED IND 300NH 35A 1.1MOHM SMD |
373 |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 300 nH | ±20% | 35 A | 52A | Shielded | 1.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CR75NP-180KCFIXED IND 18UH 1.6A 100 MOHM SMD |
3,001 |
|
Datasheet | CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.6 A | - | Unshielded | 100mOhm Max | - | 20MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CDRH8D58/LDNP-5R0NCFIXED IND 5UH 6A 17.5 MOHM SMD |
1,142 |
|
Datasheet | CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 6 A | 3.8A | Shielded | 17.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
CDRH8D58/LDNP-100NCFIXED IND 10UH 4.5A 25.6MOHM SMD |
3,017 |
|
Datasheet | CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 4.5 A | 2.6A | Shielded | 25.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.236" (6.00mm) |
|
CDRH10D48/ANP-7R2MCFIXED IND 7.2UH 2.9A 29 MOHM SMD |
3,983 |
|
Datasheet | CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 7.2 µH | ±20% | 2.9 A | - | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.177" (4.50mm) |
|
CLS62NP-220NCFIXED IND 22UH 468MA 355MOHM SMD |
4,198 |
|
Datasheet | CLS | 4-SMD | Tape & Reel (TR) | Active | - | - | 22 µH | ±30% | 468 mA | - | Shielded | 355mOhm Max | - | - | - | - | 2.52 MHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.098" (2.50mm) |
|

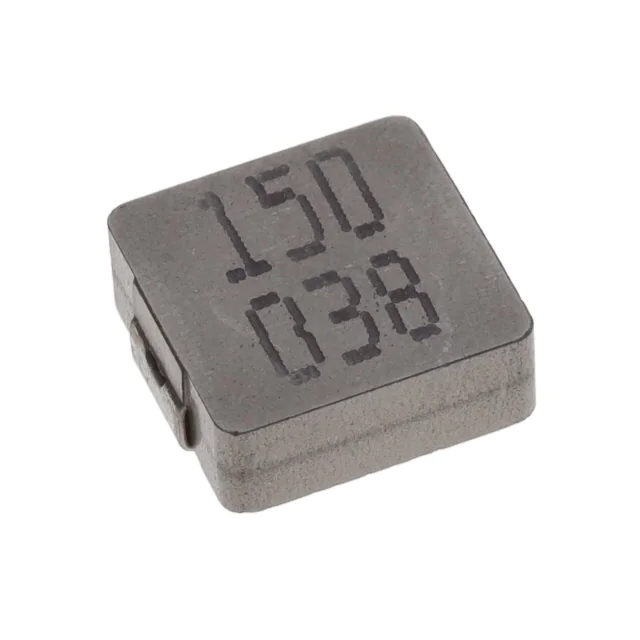

125CDMCCDS-150MCFIXED IND 15UH 8.5A 26 MOHM SMD |
4,633 |
|
Datasheet | 125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 8.5 A | 11A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CDRH60D45BT150NP-150MCFIXED IND 15UH 2A 76.8 MOHM SMD |
1,000 |
|
Datasheet | CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 2 A | 2.3A | Shielded | 76.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
CDRH70D45BT150NP-4R7NCFIXED IND 4.7UH 6.2A 14MOHM SMD |
4,882 |
|
Datasheet | CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 6.2 A | 4.2A | Shielded | 14mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
