Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125L125NP-470MCFIXED IND 47UH 2.42A 93MOHM SMD |
501 |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.42 A | 2.44A | Shielded | 93mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

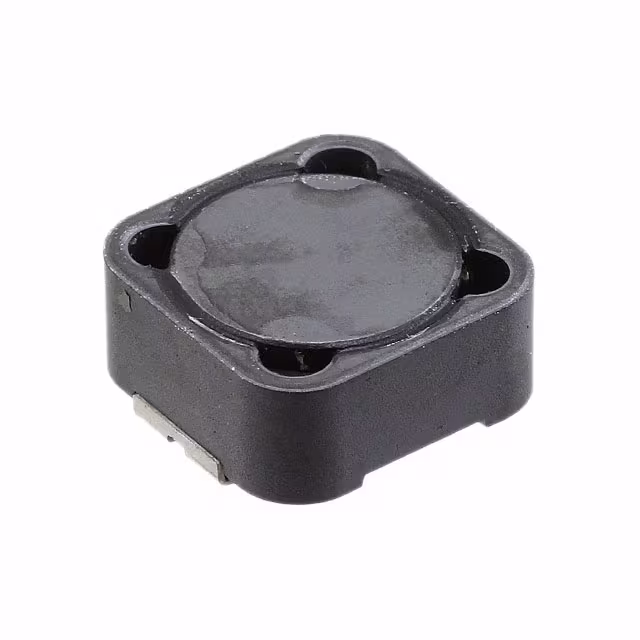

CDRH125L125NP-100MCFIXED IND 10UH 5.3A 25 MOHM SMD |
500 |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 5.3 A | 5.2A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH125L125NP-150MCFIXED IND 15UH 4.5A 33.8MOHM SMD |
514 |
|
Datasheet | CDRH125/L125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 4.5 A | 4.4A | Shielded | 33.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
CDRH80D65BT150NP-221MCFIXED IND 220UH 730MA 475MOHM SM |
1,000 |
|
Datasheet | CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 730 mA | 940mA | Shielded | 475mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
CD104NP-100MCFIXED IND 10UH 2.38A 53 MOHM SMD |
1,846 |
|
Datasheet | CD104 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.38 A | - | Unshielded | 53mOhm Max | - | 29.9MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.177" (4.50mm) |
|
CDRR105NP-100MCFIXED IND 10UH 3A 47.5 MOHM SMD |
2,773 |
|
Datasheet | CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3 A | 2.48A | Shielded | 47.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
177CDMCCDS-4R7MCFIXED IND 4.7UH 18A 4.83MOHM SMD |
107 |
|
Datasheet | 177CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 18 A | 35A | Shielded | 4.83mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
DEP1519BHF-330MFIXED IND 33UH 10A 10.7 MOHM TH |
2,752 |
|
Datasheet | DEP1519B | Radial, Vertical, 4 Leads | Box | Active | Wirewound | - | 33 µH | ±20% | 10 A | 9.4A | Shielded | 10.7mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
252012CDMCCDS-3R3MCFIXED IND 3.3UH 1.5A 222MOHM SMD |
107 |
|
Datasheet | 252012CDMCC/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Molded | Metal | 3.3 µH | ±20% | 1.5 A | 1.9A | Shielded | 222mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg "252010CDMCDDS-2R2MC")
|
252010CDMCDDS-2R2MCFIXED IND 2.2UH 2.5A 97 MOHM SMD |
594 |
|
Datasheet | 252010CDMCD/DS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 2.5 A | 2.2A | Shielded | 97mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
