Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH2D18/HPNP-6R3NCFIXED IND 6.3UH 1.15A 160MOHM SM |
240 |
|
Datasheet | CDRH2D18/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.3 µH | ±30% | 1.15 A | 1.05A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH8D28NP-4R7NCFIXED IND 4.7UH 4.5A 24.7MOHM SM |
1,341 |
|
Datasheet | CDRH8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 4.5 A | 3.4A | Shielded | 24.7mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.118" (3.00mm) |
|

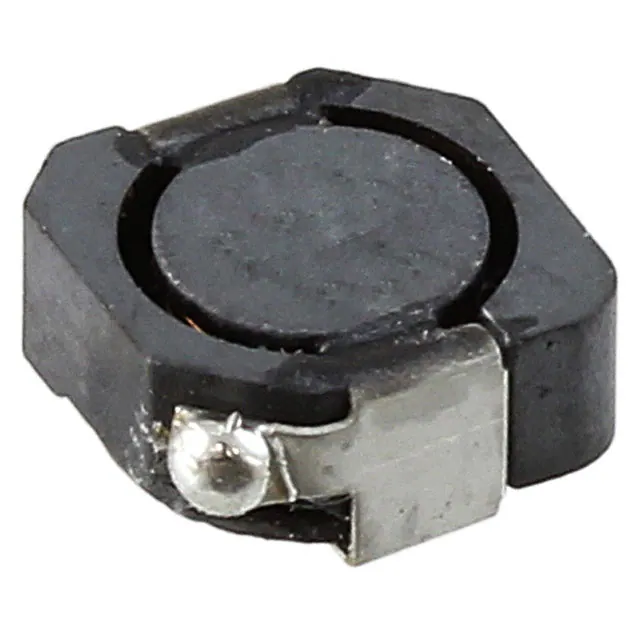

CDRH5D28RH125NP-220MCFIXED IND 22UH 900MA 266MOHM SMD |
1,373 |
|
Datasheet | CDRH5D28R/H125 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 900 mA | 1.7A | Shielded | 266mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.232" W (6.00mm x 5.90mm) | 0.118" (3.00mm) |
|
CDRH105RNP-4R7NCFIXED IND 4.7UH 6.1A 12.3MOHM SM |
979 |
|
Datasheet | CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 6.1 A | 6.4A | Shielded | 12.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
RCH8011NP-680LFIXED IND 68UH 1.9A 138 MOHM TH |
441 |
|
Datasheet | RCH8011 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±15% | 1.9 A | 1.7A | Unshielded | 138mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.425" (10.80mm) |
|
RCH855NP-220KFIXED IND 22UH 770MA 120 MOHM TH |
165 |
|
Datasheet | RCH-855 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 770 mA | 1.7A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.217" (5.50mm) |
|
CDRH4D18NP-150NCFIXED IND 15UH 500MA 240MOHM SMD |
889 |
|
Datasheet | CDRH4D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 500 mA | - | Shielded | 240mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.079" (2.00mm) |
|
RCH895NP-101KFIXED IND 100UH 720MA 190MOHM TH |
622 |
|
Datasheet | RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 900mA | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|
RCH895NP-330KFIXED IND 33UH 1.1A 70 MOHM TH |
600 |
|
Datasheet | RCH-895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.1 A | 1.4A | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|

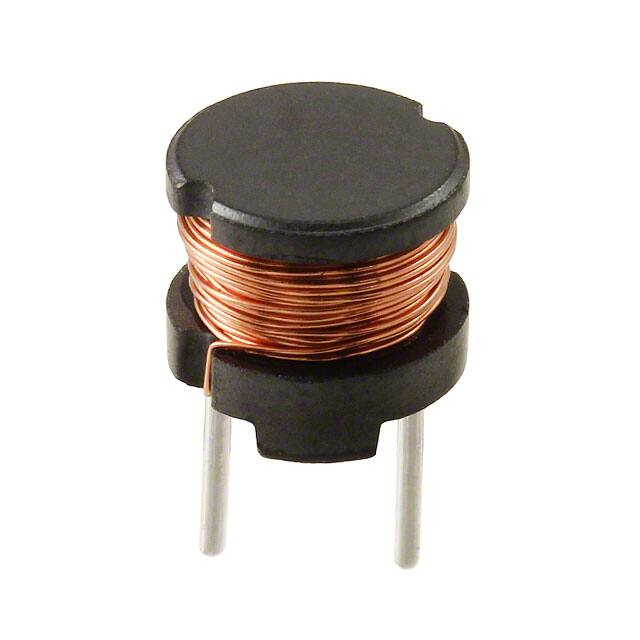

RCH875NP-102KFIXED IND 1MH 180MA 2.94 OHM TH |
543 |
|
Datasheet | RCH-875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 180 mA | 270mA | Unshielded | 2.94Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
