Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDH80D48NP-221KCFIXED IND 220UH 650MA 750MOHM SM |
500 |
|
Datasheet | CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 650 mA | 680mA | Unshielded | 750mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|
CDH80D48NP-102KCFIXED IND 1MH 310MA 2.94 OHM SMD |
410 |
|
Datasheet | CDH80D48 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 310 mA | 320mA | Unshielded | 2.94Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.197" (5.00mm) |
|

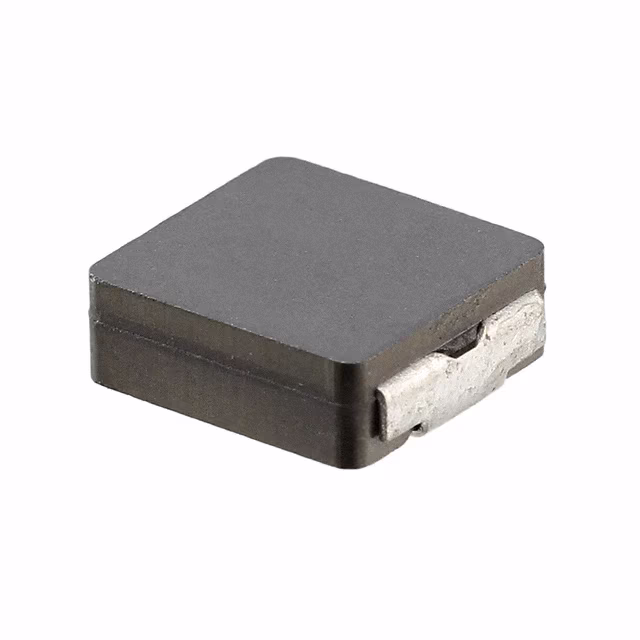

CDMC104NP-R56MFIXED IND 560NH 21A 1.48MOHM SMD |
527 |
|
Datasheet | CDMC104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 560 nH | ±20% | 21 A | 22A | Shielded | 1.48mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDRH12D77BT150NP-3R3NCFIXED IND 3.3UH 11.2A 9.62 MOHM |
207 |
|
Datasheet | CDRH12D77B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 11.2 A | 16.7A | Shielded | 9.62mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
CDEP15D90T150NP-1R0MC-100FIXED IND 1UH 24.5A 1.75MOHM SMD |
149 |
|
Datasheet | CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 24.5 A | 51.6A | Shielded | 1.75mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
CDEP15D90T150NP-1R2MC-125FIXED IND 1.2UH 24.5A 1.75 MOHM |
181 |
|
Datasheet | CDEP15D90/T150 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 24.5 A | 41.9A | Shielded | 1.75mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.610" L x 0.610" W (15.50mm x 15.50mm) | 0.394" (10.00mm) |
|
CDMT40D20HF-R47NCFIXED IND 470NH 6.8A 8.3MOHM SMD |
1,157 |
|
Datasheet | CDMT40D20 | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±30% | 6.8 A | 11.4A | Shielded | 8.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.163" L x 0.163" W (4.15mm x 4.15mm) | 0.083" (2.10mm) |
|
CDRH70D45BT150NP-331MCFIXED IND 330UH 670MA 920MOHM SM |
693 |
|
Datasheet | CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 670 mA | 510mA | Shielded | 920mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CDRH70D45BT150NP-100MCFIXED IND 10UH 3.8A 33 MOHM SMD |
1,000 |
|
Datasheet | CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 3.8 A | 3A | Shielded | 33mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
|
|
CDRH70D45BT150NP-221MCFIXED IND 220UH 910MA 550MOHM SM |
640 |
|
Datasheet | CDRH70D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 910 mA | 620mA | Shielded | 550mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.287" W (7.70mm x 7.30mm) | 0.189" (4.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
