Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS62NP-150NCFIXED IND 15UH 572MA 291MOHM SMD |
2,097 |
|
Datasheet | CLS | 4-SMD | Tape & Reel (TR) | Obsolete | - | - | 15 µH | ±30% | 572 mA | - | Shielded | 291mOhm Max | - | - | - | - | 2.52 MHz | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | 0.098" (2.50mm) |
|
CDRH2D09NP-100MCFIXED IND 10UH 420MA 450MOHM SMD |
4,126 |
|
Datasheet | CDRH2D09 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±25% | 420 mA | 280mA | Shielded | 450mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
CDRH2D09NP-2R2MCFIXED IND 2.2UH 1.05A 120MOHM SM |
1,341 |
|
Datasheet | CDRH2D09 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 2.2 µH | ±25% | 1.05 A | 600mA | Shielded | 120mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
CDRH2D09NP-4R7MCFIXED IND 4.7UH 640MA 220MOHM SM |
1,326 |
|
Datasheet | CDRH2D09 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.7 µH | ±25% | 640 mA | 410mA | Shielded | 220mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
0412CDMCBDS-1R0MCFIXED IND 1UH 4.5A 40 MOHM SMD |
2,972 |
|
Datasheet | 0412CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 4.5 A | 5.3A | Shielded | 40mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.047" (1.20mm) |
|

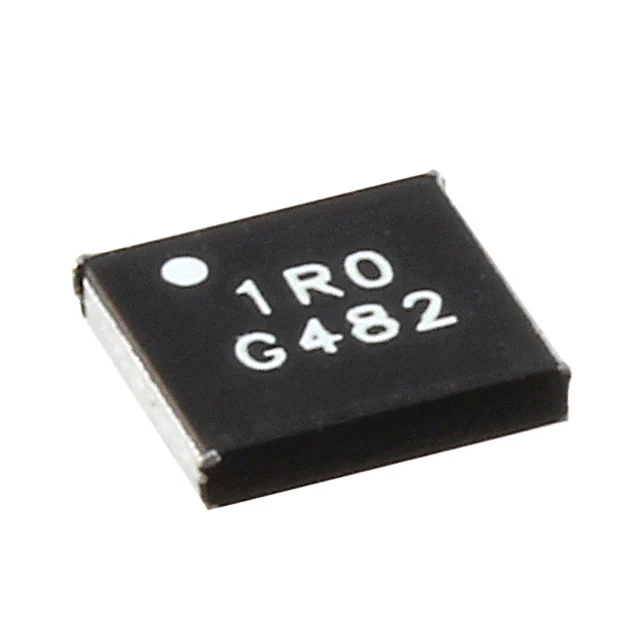

0410CDMCBDS-1R5MCFIXED IND 1.5UH 3.4A 66 MOHM SMD |
3,705 |
|
Datasheet | 0410CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±20% | 3.4 A | 2.5A | Shielded | 66mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.047" (1.20mm) |
|

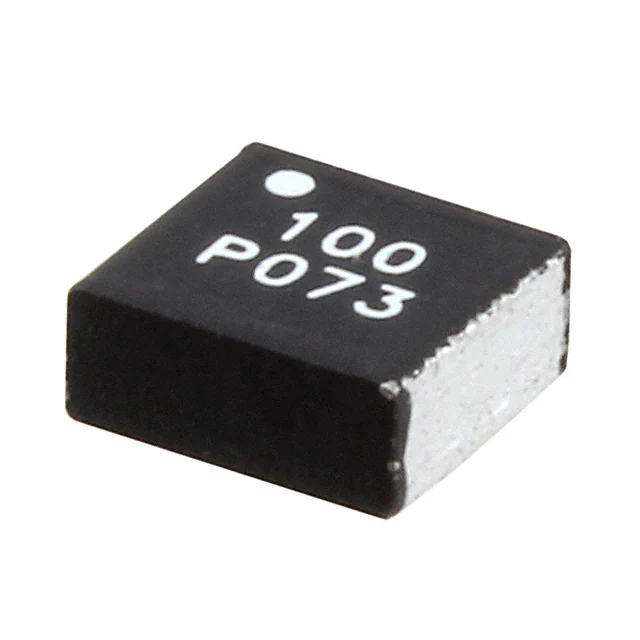

0420CDMCBDS-R22MCFIXED IND 220NH 10.1A 5.3MOHM SM |
4,610 |
|
Datasheet | 0420CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 nH | ±20% | 10.1 A | 15A | Shielded | 5.3mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCBDS-220MCFIXED IND 22UH 1.3A 316 MOHM SMD |
2,936 |
|
Datasheet | 0420CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.3 A | 1.6A | Shielded | 316mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCBDS-1R0MCFIXED IND 1UH 5.5A 17 MOHM SMD |
3,852 |
|
Datasheet | 0420CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 5.5 A | 6.8A | Shielded | 17mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0410CDMCBDS-3R3MCFIXED IND 3.3UH 2.2A 165MOHM SMD |
1,451 |
|
Datasheet | 0410CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 2.2 A | 1.8A | Shielded | 165mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | SMD | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
