Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
54068203400FIXED IND 82NH 220MA 590MOHM SMD |
4,633 |
|
Datasheet | 5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 220 mA | - | Unshielded | 590mOhm Max | 35 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0605 (1712 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
0520CDMCDS-R33MCFIXED IND 330NH 7.9A 8 MOHM SMD |
1,476 |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±20% | 7.9 A | 14A | Shielded | 8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0520CDMCDS-R68MCFIXED IND 680NH 6.6A 13 MOHM SMD |
2,940 |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±20% | 6.6 A | 10A | Shielded | 13mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-2R2MCFIXED IND 2.2UH 4.1A 30 MOHM SMD |
1,272 |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 4.1 A | 6A | Shielded | 30mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|

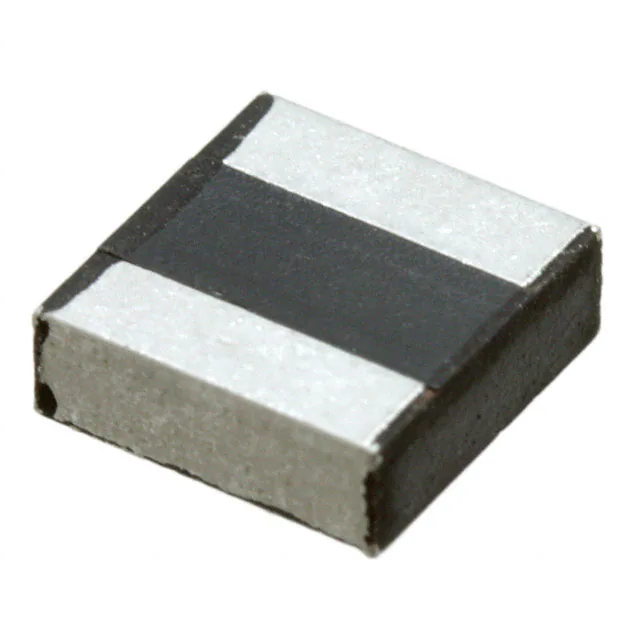

0520CDMCDS-3R3MCFIXED IND 3.3UH 3.6A 50 MOHM SMD |
4,539 |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 3.6 A | 4.9A | Shielded | 50mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-4R7MCFIXED IND 4.7UH 2.8A 65 MOHM SMD |
1,880 |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 2.8 A | 4.4A | Shielded | 65mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0420CDMCDS-6R8MCFIXED IND 6.8UH 2.6A 91 MOHM SMD |
3,065 |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.6 A | 2.8A | Shielded | 91mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R33MCFIXED IND 330NH 8.9A 6 MOHM SMD |
4,714 |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±20% | 8.9 A | 12.6A | Shielded | 6mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-2R2MCFIXED IND 2.2UH 4.7A 35 MOHM SMD |
1,372 |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 4.7 A | 4.5A | Shielded | 35mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R47MCFIXED IND 470NH 8.1A 8.2MOHM SMD |
3,721 |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±20% | 8.1 A | 11A | Shielded | 8.2mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
