Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCR875DNP-101KFIXED IND 100UH 740MA 320MOHM TH |
8,596 |
|
Datasheet | RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 100 µH | ±10% | 740 mA | - | Shielded | 320mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

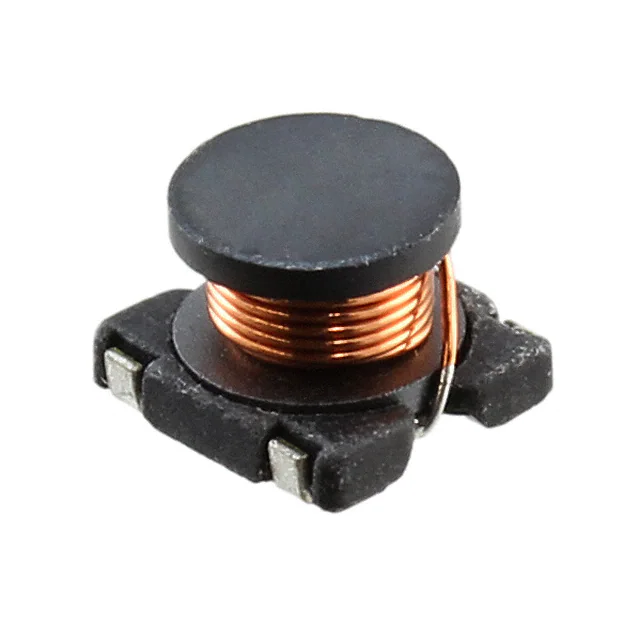

CR32NP-220KCFIXED IND 22UH 500MA 470MOHM SMD |
5,384 |
|
Datasheet | CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 500 mA | - | Unshielded | 470mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|
CD54NP-470LCFIXED IND 47UH 720MA 370MOHM SMD |
5,241 |
|
Datasheet | CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
RCR875DNP-470LFIXED IND 47UH 1.1A 170 MOHM TH |
2,046 |
|
Datasheet | RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 47 µH | ±15% | 1.1 A | - | Shielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
RCR875DNP-151KFIXED IND 150UH 600MA 510MOHM TH |
32,853 |
|
Datasheet | RCR-875D | Radial, Vertical Cylinder | Bulk | Active | - | Ferrite | 150 µH | ±10% | 600 mA | - | Shielded | 510mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
CR32NP-100KCFIXED IND 10UH 760MA 230MOHM SMD |
7,484 |
|
Datasheet | CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 760 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|
CR43NP-6R8MCFIXED IND 6.8UH 950MA 131.2 MOHM |
1,832 |
|
Datasheet | CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 950 mA | - | Unshielded | 131.2mOhm Max | - | 42.3MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
104CDMCCDS-680MCFIXED IND 68UH 2.5A 195MOHM SMD |
27,726 |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 68 µH | ±20% | 2.5 A | 4A | Shielded | 195mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
104CDMCCDS-150MCFIXED IND 15UH 6.3A 45 MOHM SMD |
2,482 |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 15 µH | ±20% | 6.3 A | 7.2A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
104CDMCCDS-6R8MCFIXED IND 6.8UH 8.5A 25MOHM SMD |
2,154 |
|
Datasheet | 104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 8.5 A | 12.5A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
