Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH4D28NP-6R8NCFIXED IND 6.8UH 1.12A 108.9 MOHM |
22,354 |
|
Datasheet | CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 1.12 A | - | Shielded | 108.9mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
CDRH6D38NP-5R0NCFIXED IND 5UH 2.9A 24 MOHM SMD |
10,649 |
|
Datasheet | CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5 µH | ±30% | 2.9 A | - | Shielded | 24mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
CDRH127L125NP-100MCFIXED IND 10UH 6A 23.6 MOHM SMD |
8,954 |
|
Datasheet | CDRH127/L125 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core | Ferrite | 10 µH | ±20% | 6 A | 8.4A | Shielded | 23.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
0630CDMCDDS-3R3MCFIXED IND 3.3UH 8.4A 22MOHM SMD |
6,925 |
|
Datasheet | 0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 3.3 µH | ±20% | 6.3 A | 11.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH4D28NP-220NCFIXED IND 22UH 700MA 235MOHM SMD |
6,171 |
|
Datasheet | CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 700 mA | - | Shielded | 235mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|
0630CDMCDDS-2R2MCFIXED IND 2.2UH 9.3A 15MOHM SMD |
5,039 |
|
Datasheet | 0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 9.2 A | 14.4A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

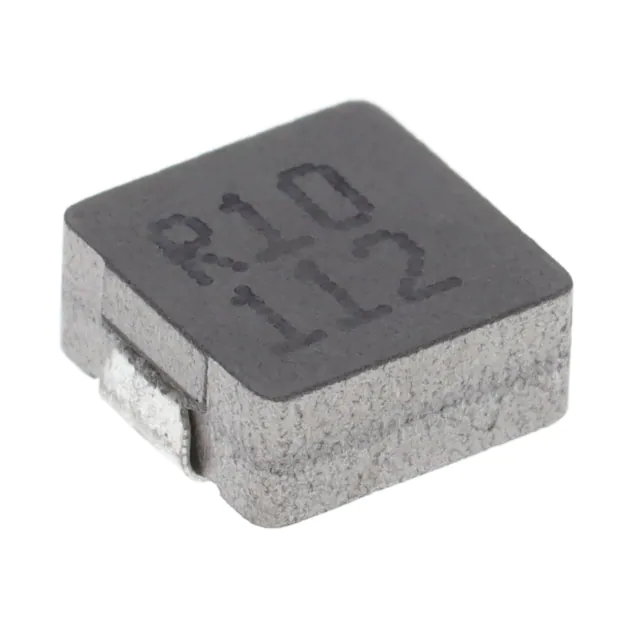

0630CDMCCDS-R10MCFIXED IND 100NH 40A 1.08MOHM SMD |
4,470 |
|
Datasheet | 0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 40 A | 61.2A | Shielded | 1.08mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
0630CDMCCDS-220MCFIXED IND 22UH 2.3A 200MOHM SMD |
3,807 |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 22 µH | ±20% | 2.3 A | 4A | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
CDRH6D38NP-220NCFIXED IND 22UH 1.3A 96 MOHM SMD |
3,661 |
|
Datasheet | CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 1.3 A | - | Shielded | 96mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
|
|
CDRH6D38NP-3R3NCFIXED IND 3.3UH 3.5A 20 MOHM SMD |
5,921 |
|
Datasheet | CDRH6D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 3.5 A | - | Shielded | 20mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.157" (4.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
