Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCH74-391FIXED IND 390UH 460MA 2.09OHM SM |
1,898 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 µH | ±10% | 460 mA | 380mA | Unshielded | 2.09Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-470FIXED IND 47UH 1.55A 230MOHM SMD |
4,326 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±10% | 1.55 A | 1.2A | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-471FIXED IND 470UH 440MA 2.39OHM SM |
2,938 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 µH | ±10% | 440 mA | 330mA | Unshielded | 2.39Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-560FIXED IND 56UH 1.43A 260MOHM SMD |
4,711 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 56 µH | ±10% | 1.43 A | 1.15A | Unshielded | 260mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-680FIXED IND 68UH 1.33A 350MOHM SMD |
1,741 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±10% | 1.33 A | 1A | Unshielded | 350mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-820FIXED IND 82UH 1.23A 480MOHM SMD |
1,571 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±10% | 1.23 A | 920mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
SCRH3D16A-1R5FIXED IND 1.5UH 2.25A 52MOHM SMD |
1,503 |
|
Datasheet | SCRH3D16A | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 1.5 µH | ±30% | 2.25 A | 1.55A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.075" (1.90mm) |
|
SC414MF-120FIXED IND 12UH 820MA 367MOHM SMD |
1,712 |
|
Datasheet | SC414MF | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±20% | 820 mA | 810mA | Shielded | 367mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.059" (1.50mm) |
|

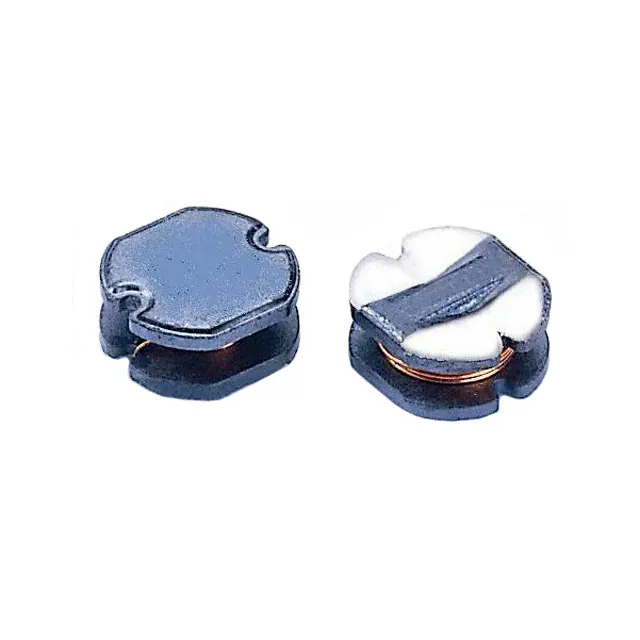

SC73-100FIXED IND 10UH 2.4A 80 MOHM SMD |
3,394 |
|
Datasheet | SC73 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 2.4 A | 1.44A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.150" (3.80mm) |
|
|
SC73-101FIXED IND 100UH 880MA 480MOHM SM |
1,200 |
|
Datasheet | SC73 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 880 mA | 510mA | Unshielded | 480mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.319" L x 0.287" W (8.10mm x 7.30mm) | 0.150" (3.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
