Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1B1-303012-100MFIXED IND 10.0UH 550MA 650 MOHM |
1,075 |
|
Datasheet | F1B1-303012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 550 mA | 780mA | Unshielded | 650Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
F1B1-303015-150MFIXED IND 15.0UH 600MA 700 MOHM |
2,315 |
|
Datasheet | F1B1-303015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 15 µH | ±20% | 600 mA | 800mA | Unshielded | 700Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
F1B1-303010-5R6MFIXED IND 5.6UH 1.05A 475 MOHM |
3,350 |
|
Datasheet | F1B1-303010 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 5.6 µH | ±20% | 1.05 A | 850mA | Unshielded | 475Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
F1B1-383815-330MFIXED IND 33.0UH 520MA 1188 MOHM |
4,806 |
|
Datasheet | F1B1-383815 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 33 µH | ±20% | 520 mA | 580mA | Unshielded | 1.188kOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|

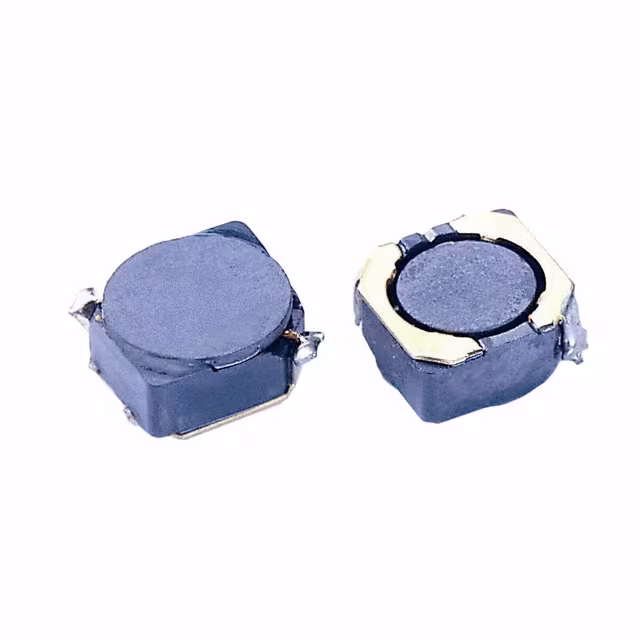

SCRH6D28-5R0FIXED IND 5UH 2.4A 31 MOHM SMD |
3,626 |
|
Datasheet | SCRH6D28 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 5 µH | ±30% | 2.4 A | 2.4A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.118" (3.00mm) |
|

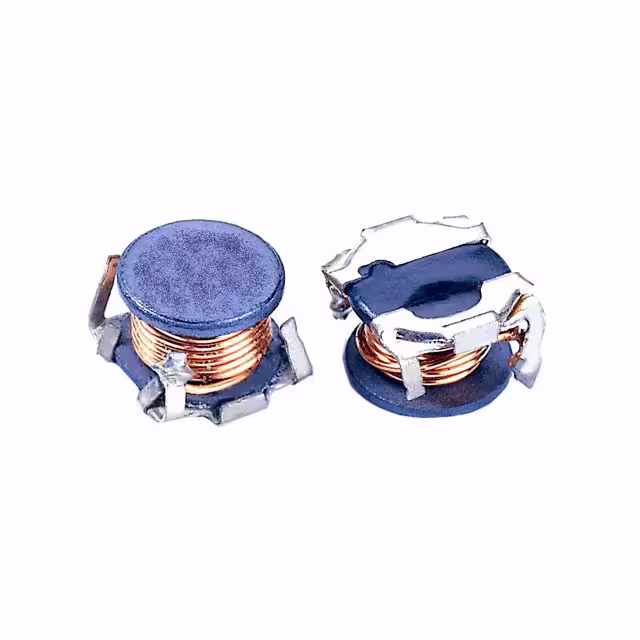

SCH74-100FIXED IND 10UH 3.2A 56 MOHM SMD |
3,604 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±15% | 3.2 A | 2.75A | Unshielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-101FIXED IND 100UH 1A 550 MOHM SMD |
3,181 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±10% | 1 A | 810mA | Unshielded | 550mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-120FIXED IND 12UH 2.95A 65 MOHM SMD |
4,092 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±15% | 2.95 A | 2.45A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-121FIXED IND 120UH 850MA 620MOHM SM |
1,919 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 120 µH | ±10% | 850 mA | 730mA | Unshielded | 620mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
SCH74-150FIXED IND 15UH 2.66A 83 MOHM SMD |
4,319 |
|
Datasheet | SCH74 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±15% | 2.66 A | 2.1A | Unshielded | 83mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
