Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2247.223NLTFIXED IND 22UH 16A 15.8MOHM SMD |
534 |
|
Datasheet | PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 16 A | 18A | Unshielded | 15.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
|

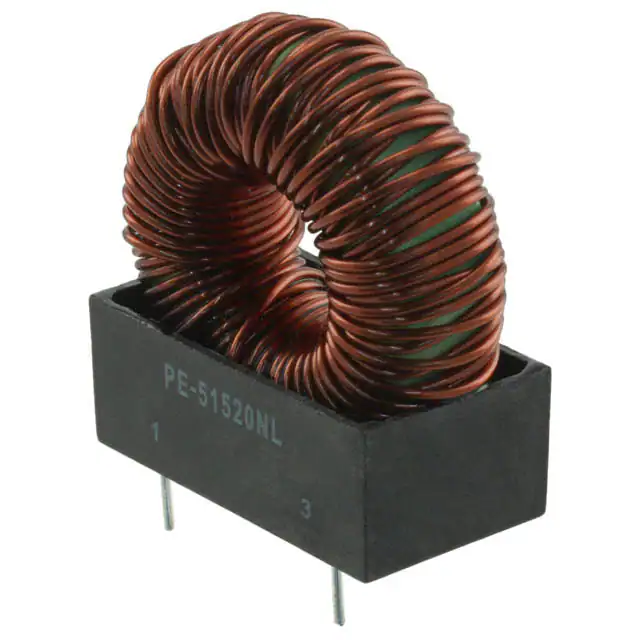

PE-51520NLFIXED IND 400UH 3.6A 130 MOHM TH |
778 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 400 µH | - | 3.6 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.600" L x 0.800" W (40.64mm x 20.32mm) | 1.720" (43.68mm) |
|

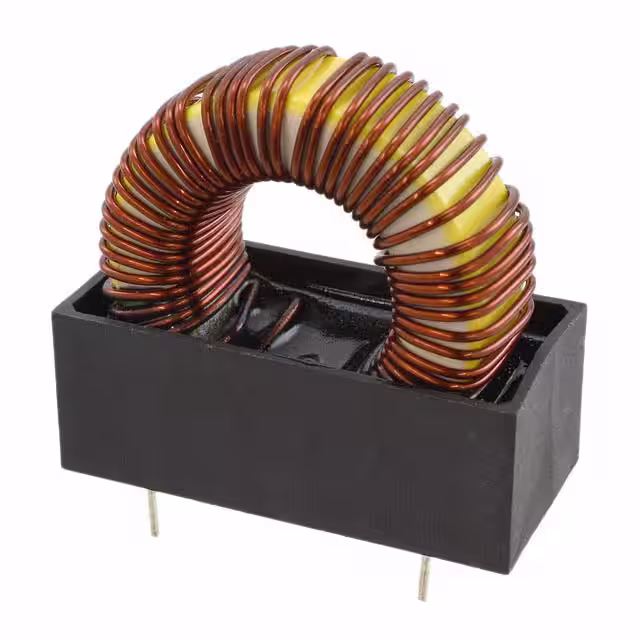

PE-51517NLFIXED IND 175UH 6A 68 MOHM TH |
205 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 175 µH | - | 6 A | - | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
BSCH000603033N9S00FIXED IND 3.9NH 300MA 270MOHM SM |
554,945 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 270mOhm Max | 4 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCH000603032N7S00FIXED IND 2.7NH 340MA 210MOHM SM |
253,074 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 340 mA | - | Unshielded | 210mOhm Max | 4 @ 100MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCH000603032N4S00FIXED IND 2.4NH 350MA 200MOHM SM |
251,237 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.4 nH | ±0.3nH | 350 mA | - | Unshielded | 200mOhm Max | 4 @ 100MHz | 8.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCH000603036N2S00FIXED IND 6.2NH 250MA 380MOHM SM |
249,034 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.2 nH | ±0.3nH | 250 mA | - | Unshielded | 380mOhm Max | 4 @ 100MHz | 4.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCH000603039N1J00FIXED IND 9.1NH 220MA 480MOHM SM |
248,720 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 9.1 nH | ±5% | 220 mA | - | Unshielded | 480mOhm Max | 4 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCH000603031N5S00FIXED IND 1.5NH 430MA 130MOHM SM |
246,242 |
|
Datasheet | BSCH | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 430 mA | - | Unshielded | 130mOhm Max | 4 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BSCH001005053N3SCSINDUCTOR RF |
234,652 |
|
Datasheet | BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 400 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
