Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4344.333ANLTFIXED IND 33UH 12A 37 MOHM SMD |
783 |
|
Datasheet | PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 12 A | 12A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|

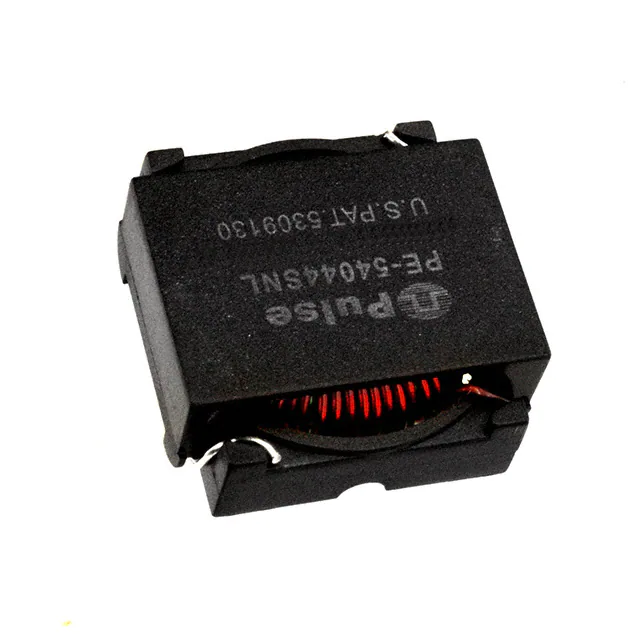

PE-54044SNLFIXED IND 77UH 3A 80 MOHM SMD |
1,103 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PA2050.103NLFIXED IND 10.2UH 12.5A 5.8 MOHM |
744 |
|
Datasheet | PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 10.2 µH | ±10% | 12.5 A | 16A | Shielded | 5.8mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|

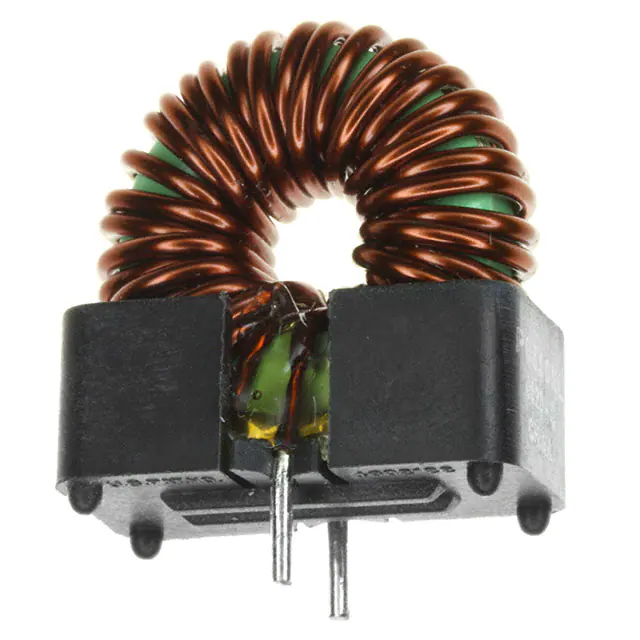

P0850NLFIXED IND 23UH 5A 26 MOHM TH |
666 |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 23 µH | ±20% | 5 A | - | Shielded | 26mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

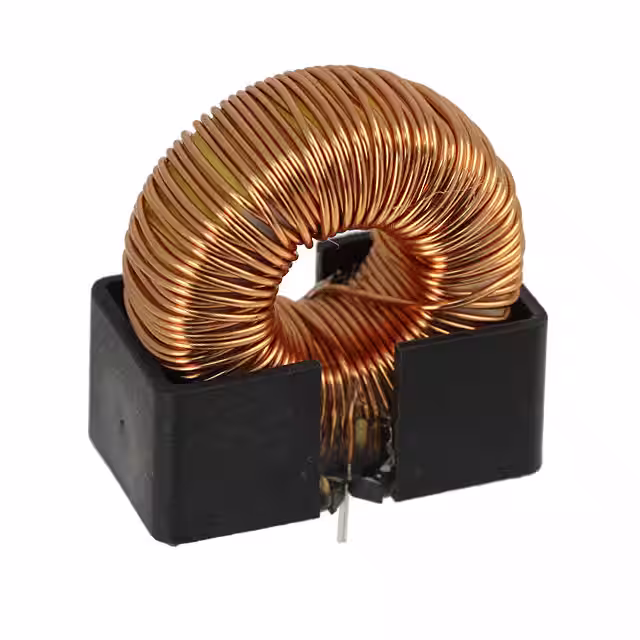

PE-53120NLFIXED IND 1MH 950MA 240 MOHM TH |
477 |
|
Datasheet | - | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
PG1096.223NLTPULSE XFMR 19.5UH |
304 |
|
Datasheet | PG1096NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 19.5 µH | ±20% | 17 A | 19A | Unshielded | 5.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 1.024" L x 1.024" W (26.00mm x 26.00mm) | 0.583" (14.80mm) |
|
PA4349.332ANLTFIXED IND 3.3UH 49A 1.75MOHM SMD |
1,047 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 47 A | 37A | Shielded | 1.75mOhm Max | - | 15MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.222ANLTFIXED IND 2.2UH 58A 1.25MOHM SMD |
544 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 52 A | 43A | Shielded | 1.25mOhm Max | - | 19MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.152ANLTFIXED IND 1.5UH 62A 1.15MOHM SMD |
741 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 57 A | 48A | Shielded | 1.15mOhm Max | - | 21MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
PA4349.823ANLTFIXED IND 82UH 12A 34.2 MOHM SMD |
557 |
|
Datasheet | PA4349.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 82 µH | ±20% | 10 A | 7.7A | Shielded | 34.2mOhm Max | - | 1.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.925" L x 0.866" W (23.50mm x 22.00mm) | 0.512" (13.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
