Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0702.472NLFIXED IND 4.7UH 8.4A 5.3MOHM SMD |
3,107 |
|
Datasheet | PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 8.4 A | 8.4A | Shielded | 5.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
P0250.224NLTFIXED IND 220UH 1.2A 380MOHM SMD |
3,617 |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±15% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
PE-53817SNLFIXED IND 375UH 360MA 1.3OHM SMD |
1,615 |
|
Datasheet | - | Nonstandard | Bulk | Active | Toroidal | - | 375 µH | ±20% | 360 mA | - | Shielded | 1.3Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PA4346.471ANLTFIXED IND 470NH 34A 0.9 MOHM SMD |
4,920 |
|
Datasheet | PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 34 A | 58A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
PD0120.532NLFIXED IND 5.7UH 10.4A 8.5MOHM SM |
4,012 |
|
Datasheet | PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 5.7 µH | ±10% | 10.4 A | 13.6A | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
PE-53600NLFIXED IND 6.2UH 1.4A 70 MOHM SMD |
2,175 |
|
Datasheet | SLIC | Nonstandard | Tube | Active | Toroidal | - | 6.2 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PG1083.472NLFIXED IND 4.7UH 26A 2.8 MOHM SMD |
2,689 |
|
Datasheet | PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 26 A | 30A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|

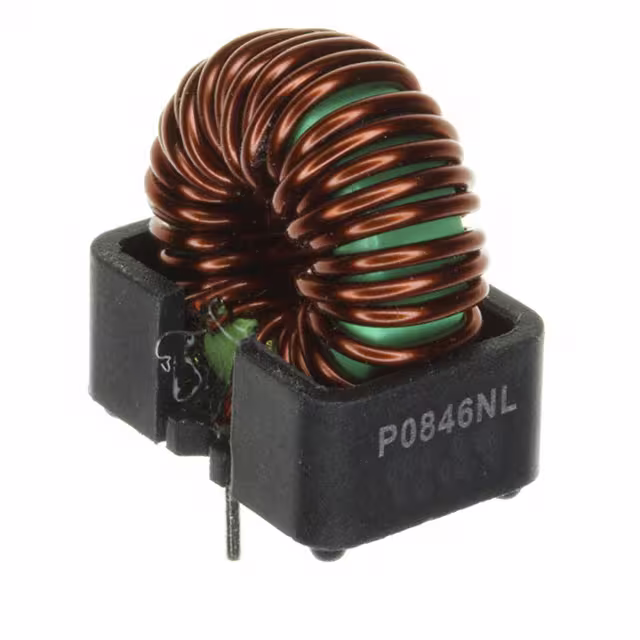

P0846NLFIXED IND 14.8UH 5A 23 MOHM TH |
3,795 |
|
Datasheet | KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 23mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.670" L x 0.460" W (17.02mm x 11.69mm) | 0.750" (19.05mm) |
|
PE-53683NLFIXED IND 9.4UH 10.9A 12.3 MOHM |
4,959 |
|
Datasheet | SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9.4 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|
PE-53611NLTFIXED IND 383UH 720MA 862MOHM SM |
1,273 |
|
Datasheet | SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 383 µH | - | 720 mA | - | Unshielded | 862mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
