Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

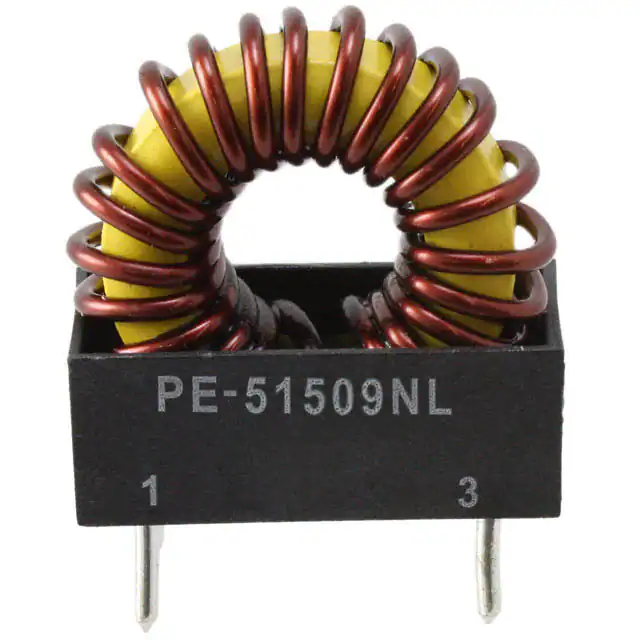

PE-51509NLFIXED IND 14UH 10A 9 MOHM TH |
4,770 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 14 µH | - | 10 A | - | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|

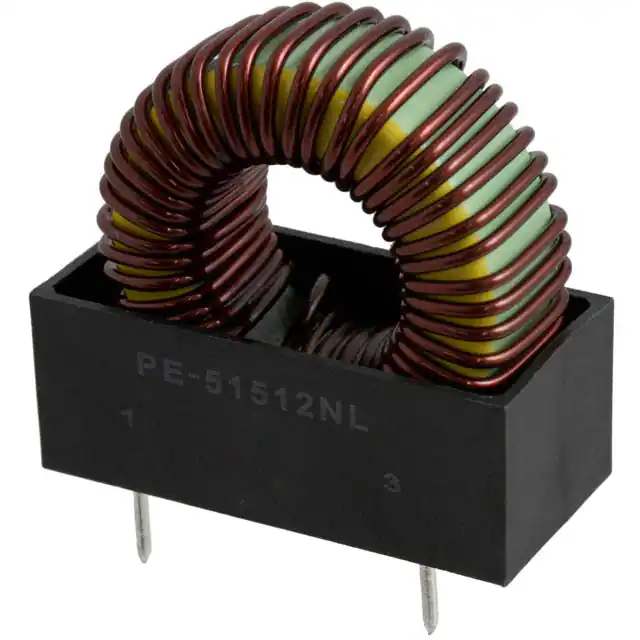

PE-51512NLFIXED IND 90UH 10A 28 MOHM TH |
1,973 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 90 µH | - | 10 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
P0250.103NLFIXED IND 10UH 4.3A 31 MOHM SMD |
2,312 |
|
Datasheet | P0250NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±15% | 4.3 A | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
PE-0603CD390GTTFIXED IND 39NH 600MA 250MOHM SMD |
1,129 |
|
Datasheet | 0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 35 @ 250MHz | 2.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
P0770.103NLFIXED IND 10UH 1.1A 160 MOHM SMD |
3,346 |
|
Datasheet | P0770NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA3790.201HLFIXED IND 200NH 57A 0.29MOHM SMD |
3,783 |
|
Datasheet | PA3790.XXXHL | Nonstandard | Tray | Active | - | - | 200 nH | ±15% | 57 A | 73A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|
|
P0250.102NLFIXED IND 1UH 8.6A 9 MOHM SMD |
4,158 |
|
Datasheet | P0250NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±15% | 8.6 A | 20A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
P1167.823NLFIXED IND 82UH 700MA 350MOHM SMD |
2,831 |
|
Datasheet | P1167NL | Nonstandard | Tray | Active | Wirewound | - | 82 µH | ±20% | 700 mA | 700mA | Shielded | 350mOhm Max | - | 8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
PA2607.211AHLFIXED IND 215NH 41A 0.29MOHM SMD |
2,814 |
|
Datasheet | PA2607AHL | Nonstandard | Tray | Active | - | - | 215 nH | ±15% | 41 A | 48A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
|
|
PA2607.231AHLFIXED IND 230NH 41A 0.29MOHM SMD |
4,595 |
|
Datasheet | PA2607AHL | Nonstandard | Tray | Active | - | - | 230 nH | ±15% | 41 A | 43A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
