Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAL6374.121HLTIND POWER BEAD TLVR |
1,470 |
|
Datasheet | PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 71 A | 66A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.800HLTIND POWER BEAD TLVR |
340 |
|
Datasheet | PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 80 nH | ±15% | 71 A | 100A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
|
PAL6374.700HLTIND POWER BEAD TLVR |
340 |
|
Datasheet | PAL6374.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±15% | 71 A | 114A | Unshielded | 0.45mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.472" (12.00mm) |
|
PA4321.152NLTFIXED IND 1.5UH 7.8A 5.1MOHM SMD |
5,442 |
|
Datasheet | PA4321 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 7.8 A | 5.44A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.402" W (10.00mm x 10.20mm) | 0.201" (5.10mm) |
|
PG0926.722NLFIXED IND 7.2UH 12A 7 MOHM SMD |
937 |
|
Datasheet | PG0926NL | Nonstandard | Tray | Active | Wirewound | - | 7.2 µH | ±20% | 12 A | 12.5A | Unshielded | 7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.528" W (13.40mm x 13.40mm) | 0.315" (8.00mm) |
|

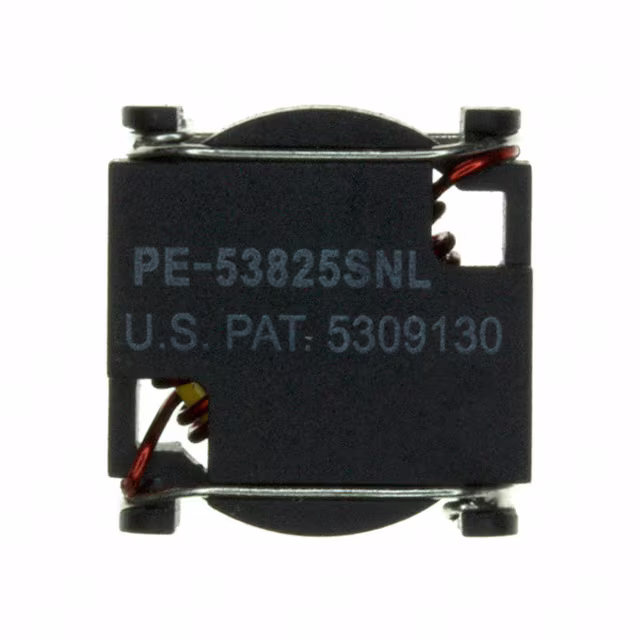

PE-53825SNLFIXED IND 18UH 1.81A 60 MOHM SMD |
1,040 |
|
Datasheet | - | Nonstandard | Tube | Active | Toroidal | - | 18 µH | ±20% | 1.81 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PG0936.113NLFIXED IND 11UH 14A 7 MOHM SMD |
950 |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 11 µH | ±20% | 14 A | 14A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.682NLFIXED IND 6.8UH 18A 3.5 MOHM SMD |
950 |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
|
PG0936.282NLFIXED IND 2.8UH 24A 2.2 MOHM SMD |
880 |
|
Datasheet | PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 24 A | 28A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PA5006.271NLTFIXED IND 270NH 21A 3.5 MOHM SMD |
2,950 |
|
Datasheet | PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 270 nH | ±20% | 21 A | 35A | Shielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
