Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1172.472NLTFIXED IND 4.7UH 7.9A 9.5MOHM SMD |
545 |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 7.9 A | 8.2A | Shielded | 9.5mOhm Max | - | 33MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
PG0255.601NLFIXED IND 600NH 27A 1.87MOHM SMD |
1,670 |
|
Datasheet | PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 600 nH | ±15% | 27 A | 28A | Shielded | 1.87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

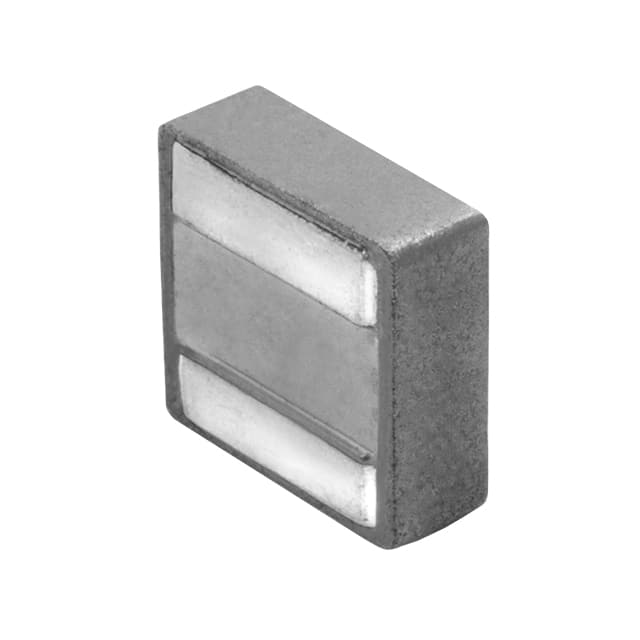

PA5007.682NLTFIXED IND 6.8UH 6.8A 42.5MOHM SM |
3,199 |
|
Datasheet | PA5007.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 6.8 µH | ±20% | 6.8 A | 12A | Shielded | 42.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PA5006.471NLTFIXED IND 470NH 17A 6.2MOHM SMD |
1,022 |
|
Datasheet | PA5006.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 470 nH | ±20% | 17 A | 28A | Shielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
P1172.473NLTFIXED IND 47UH 2.6A 89 MOHM SMD |
1,567 |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 2.6 A | 2.6A | Shielded | 89mOhm Max | - | 7MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
|
P1172.103NLTFIXED IND 10UH 5.2A 21.8MOHM SMD |
1,078 |
|
Datasheet | P1172NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.2 A | 5.5A | Shielded | 21.8mOhm Max | - | 20MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
P1173.183NLTFIXED IND 18UH 4A 37 MOHM SMD |
1,036 |
|
Datasheet | P1173NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | 13MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.482" L x 0.482" W (12.24mm x 12.24mm) | 0.315" (8.00mm) |
|
PG0434.202NLFIXED IND 2UH 23A 2.9 MOHM SMD |
830 |
|
Datasheet | PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 2 µH | ±20% | 23 A | 24A | Shielded | 2.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.282NLFIXED IND 2.8UH 19A 4.2 MOHM SMD |
830 |
|
Datasheet | PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 2.8 µH | ±20% | 19 A | 20A | Shielded | 4.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
|
|
PG0434.401NLFIXED IND 450NH 45A 0.8 MOHM SMD |
830 |
|
Datasheet | PG0434NL | Nonstandard | Tray | Active | Wirewound | - | 450 nH | ±20% | 45 A | 48A | Shielded | 0.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.512" W (14.50mm x 13.00mm) | 0.256" (6.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
