Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195P5FIXED IND 30MH 5A 230 MOHM CHASS |
4,007 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 30 mH | ±15% | 5 A | - | Unshielded | 230mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.750" L x 4.200" W (95.25mm x 106.68mm) | 3.130" (79.50mm) |
|

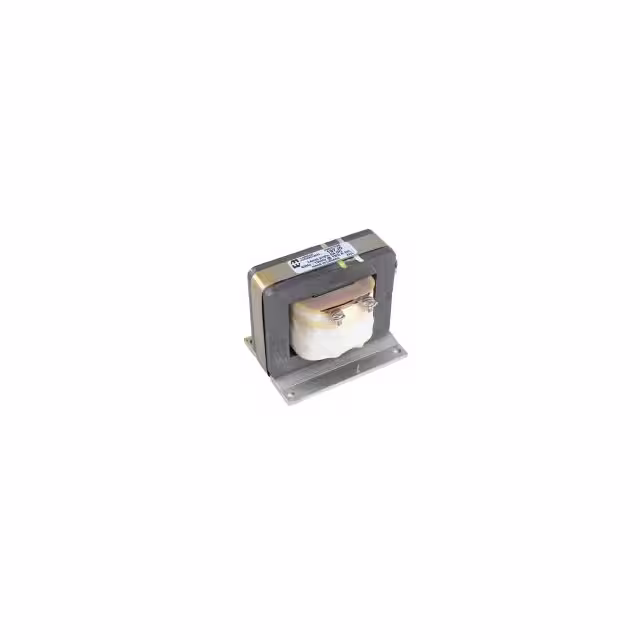

197J5FIXED IND 14MH 5A 0.293OHM SMD |
2,248 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 14 mH | ±15% | 5 A | - | Unshielded | 293mOhm | - | 74.35kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
C-60UFIXED IND 5MH 22.5A 60 MOHM CHAS |
2,221 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 5 mH | -20%, +50% | 22.5 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.500" L x 4.187" W (114.30mm x 106.35mm) | 3.750" (95.25mm) |
|
|
195J50FIXED IND 10MH 50A 23 MOHM CHASS |
2,343 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 50 A | - | Unshielded | 23mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 9.750" W (228.60mm x 247.65mm) | 7.500" (190.50mm) |
|
|
195E100FIXED IND 2.5MH 100A 6 MOHM CHAS |
4,532 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 100 A | - | Unshielded | 6mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 9.750" W (228.60mm x 247.65mm) | 7.500" (190.50mm) |
|
|
195G75FIXED IND 5MH 75A 10 MOHM CHASS |
3,361 |
|
Datasheet | 195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 75 A | - | Unshielded | 10mOhm | - | - | - | - | - | - | Chassis Mount | - | 9.000" L x 9.500" W (228.60mm x 241.30mm) | 7.760" (197.10mm) |
|
CLF6045NIT-331M-DFIXED IND 330UH 360MA 1.1OHM SMD |
1,914 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 360 mA | 360mA | Shielded | 1.1Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
|
CLF6045NIT-471M-DFIXED IND 470UH 280MA 1.56OHM SM |
1,340 |
|
Datasheet | CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 280 mA | 280mA | Shielded | 1.56Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
 TDK.jpg "MLF2012E8R2KT000")
|
MLF2012E8R2KT000FIXED IND 8.2UH 15MA 700MOHM SMD |
882 |
|
Datasheet | MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 8.2 µH | ±10% | 15 mA | - | Shielded | 700mOhm Max | 50 @ 4MHz | 35MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
SLF6025T-680MR42-PFFIXED IND 68UH 540MA 444MOHM SMD |
837 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 540 mA | 420mA | Shielded | 444mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
SLF6025T-6R8M1R3-PFFIXED IND 6.8UH 1.5A 53.04 MOHM |
812 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | 1.3A | Shielded | 53.04mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
SLF12575T-2R7N7R0-PFFIXED IND 2.7UH 7A 11.3 MOHM SMD |
500 |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 7 A | 10A | Shielded | 11.3mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
BSCH001005053N0SCPFIXED IND 3NH 400MA 150MOHM SMD |
10,607 |
|
Datasheet | BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3 nH | ±0.3nH | 400 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
MCLA1005V2-100-RFIXED IND 10NH 300MA 400MOHM SMD |
1,000 |
|
Datasheet | MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
7847806270WE-MCI MULTILAYER CERAMIC SMD IN |
966 |
|
Datasheet | WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg "LQG15HN82NH02D")
|
LQG15HN82NH02DFIXED IND 82NH 200MA 1.6OHM SMD |
926 |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 82 nH | ±3% | 200 mA | - | Unshielded | 1.6Ohm Max | - | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
MCLA1608V2-390-RFIXED IND 39NH 300MA 700MOHM SMD |
915 |
|
Datasheet | MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 39 nH | ±5% | 300 mA | - | Unshielded | 700mOhm Max | 12 @ 100MHz | 1.4GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCLA1608V2-181-RFIXED IND 180NH 200MA 1.9OHM SMD |
900 |
|
Datasheet | MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 180 nH | ±5% | 200 mA | - | Unshielded | 1.9Ohm Max | 8 @ 50MHz | 400MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
BSCH0010050522NJCPFIXED IND 22NH 300MA 420MOHM SMD |
880 |
|
Datasheet | BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 300 mA | - | Unshielded | 420mOhm Max | 8 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
MCLA1005V2-151-RFIXED IND 150NH 100MA 3.2OHM SMD |
850 |
|
Datasheet | MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 150 nH | ±5% | 100 mA | - | Unshielded | 3.2Ohm Max | 8 @ 100MHz | 550MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
