Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1539M05FIXED IND 100UH 4.5A 72 MOHM TH |
4,545 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4.5 A | - | Unshielded | 72mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
C-8XFIXED IND 7H 75MA 240 OHM CHASS |
2,238 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 7 H | -20%, +50% | 75 mA | - | Unshielded | 240Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 1.750" W (84.12mm x 44.45mm) | 1.940" (49.28mm) |
|
|
1539M07FIXED IND 500UH 2A 378 MOHM TH |
2,648 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 2 A | - | Unshielded | 378mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
7443763540068FIXED IND 6.8UH 56.7A 1.2MOHM TH |
4,363 |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 56.7 A | 76.5A | Shielded | 1.2mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
|
1539M06FIXED IND 250UH 2.9A 173 MOHM TH |
1,056 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 2.9 A | - | Unshielded | 173mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" Dia (21.08mm) | 0.910" (23.11mm) |
|
|
1539M10FIXED IND 5UH 20A 5 MOHM TH |
3,732 |
|
Datasheet | 1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 20 A | - | Unshielded | 5mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.220" Dia (30.99mm) | 1.110" (28.19mm) |
|
156MFIXED IND 3H 100MA 86 OHM CHASS |
4,888 |
|
Datasheet | 156 | Nonstandard | Bulk | Active | - | - | 3 H | ±15% | 100 mA | - | Unshielded | 86Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) |
|
155HFIXED IND 5H 50MA 270 OHM CHASS |
3,366 |
|
Datasheet | 155 | Nonstandard | Bulk | Active | - | - | 5 H | ±15% | 50 mA | - | Unshielded | 270Ohm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) |
|
CTX250-5-52-RFIXED IND 250UH 9.2A 40 MOHM TH |
1,854 |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 9.2 A | 8.1A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.114" Dia x 0.957" W (53.70mm x 24.30mm) | - |
|
|
155JFIXED IND 15H 30MA 1.026K OHM |
2,968 |
|
Datasheet | 155 | Nonstandard | Bulk | Active | - | - | 15 H | ±15% | 30 mA | - | Unshielded | 1.026kOhm | - | - | - | - | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | 1.380" (35.05mm) |
|
506WLSN6R00KT236TFIXED IND 6UH 236MA 2.8 OHM SMD |
2,152 |
|
Datasheet | 506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6 µH | ±10% | 236 mA | - | Unshielded | 2.8Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
85071-A0FIXED IND 3.7UH 140 MOHM SMD |
0 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Thick Film | Ceramic, Ferrite | 3.7 µH | ±25% | - | 275mA | Shielded | 140mOhm | - | - | - | -45°C ~ 250°C | - | - | Surface Mount | - | 0.200" L x 0.200" W (5.08mm x 5.08mm) | - |
|
IHXL1500VZEBR68M5AFIXED IND 680NH 235A 0.13MOHM TH |
3,065 |
|
Datasheet | IHXL-1500VZ-5A | Nonstandard | Bulk | Active | - | - | 680 nH | ±20% | 235 A | - | Shielded | 0.13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - | 1.500" L x 1.500" W (38.10mm x 38.10mm) | 0.872" (22.15mm) |
|
159TFIXED IND 2.5H 300MA 43 OHM CHAS |
3,713 |
|
Datasheet | 159 | Nonstandard | Bulk | Active | - | - | 2.5 H | ±15% | 300 mA | - | Unshielded | 43Ohm | - | - | - | - | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) |
|
193BFIXED IND 12H 100MA 155 OHM CHAS |
3,401 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 12 H | ±15% | 100 mA | - | Unshielded | 155Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.125" (79.38mm) |
|

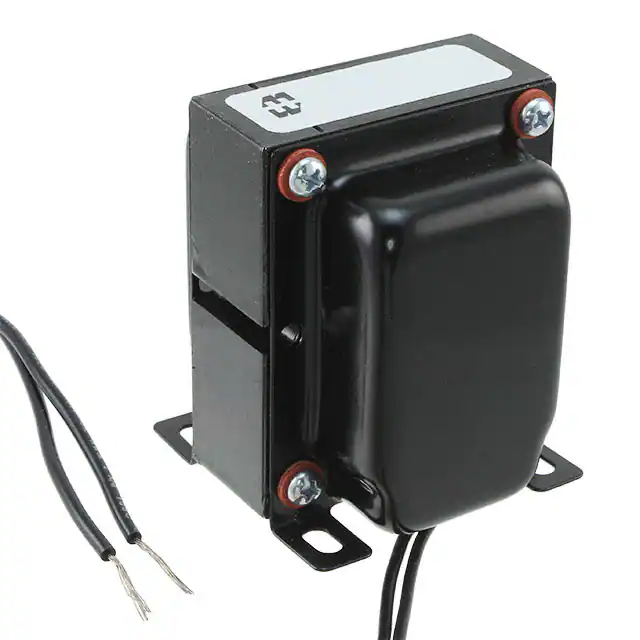

193HFIXED IND 5H 200MA 65 OHM CHASS |
1,514 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 200 mA | - | Unshielded | 65Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 2.750" L x 2.500" W (69.85mm x 63.50mm) | 3.125" (79.38mm) |
|
C-49UFIXED IND 32MH 5A 28 MOHM CHASS |
1,909 |
|
Datasheet | C | Nonstandard | Bulk | Active | Wirewound | - | 32 mH | -20%, +50% | 5 A | - | Unshielded | 28mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.500" L x 3.625" W (88.90mm x 92.07mm) | 4.250" (107.95mm) |
|
|
193CFIXED IND 20H 100MA 181 OHM CHAS |
3,394 |
|
Datasheet | 193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 20 H | ±15% | 100 mA | - | Unshielded | 181Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 2.940" L x 2.500" W (74.68mm x 63.50mm) | 3.125" (79.38mm) |
|

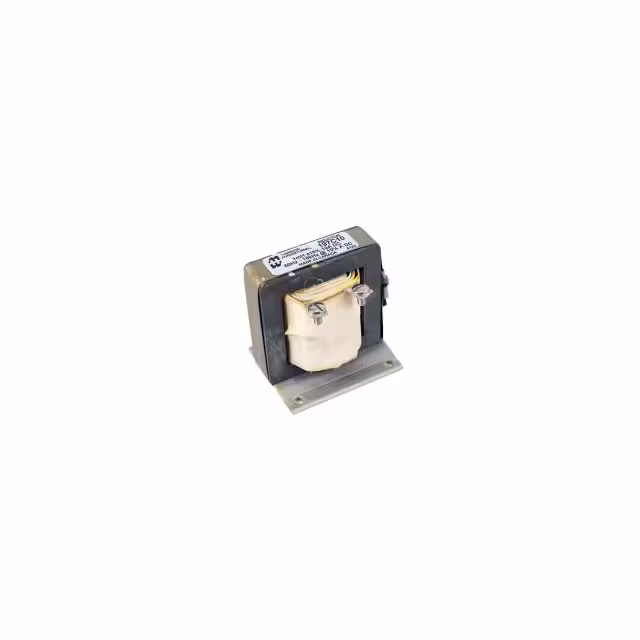

197C10FIXED IND 1MH 10A 0.075OHM SMD |
1,643 |
|
Datasheet | 197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1 mH | ±15% | 10 A | - | Unshielded | 75mOhm | - | 514.2kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|
CH-6FIXED IND 40MH 6A 400 MOHM CHASS |
2,273 |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 40 mH | - | 6 A | - | Unshielded | 400mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.626" W (95.30mm x 92.10mm) | 3.252" (82.60mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
