Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35801CFIXED IND 800NH 9.5A 10 MOHM SMD |
1,846 |
|
Datasheet | 3500 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 800 nH | ±25% | 9.5 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.126" (3.20mm) |
|

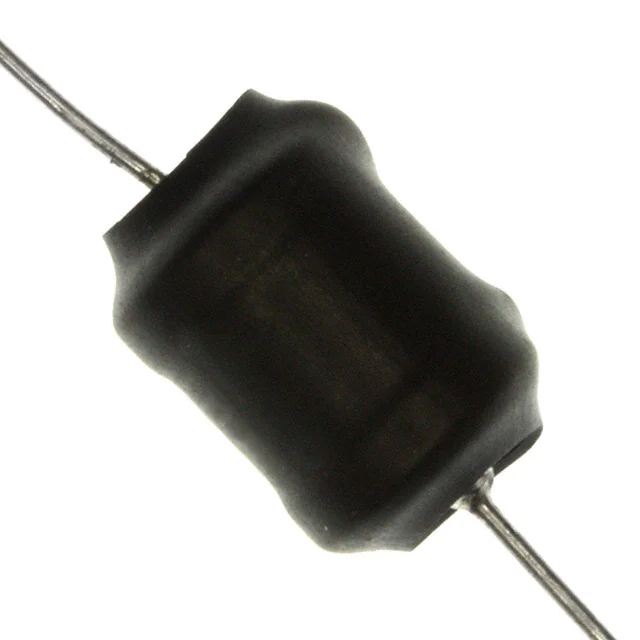

18473CFIXED IND 47UH 1.65A 55 MOHM TH |
4,210 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 47 µH | ±10% | 1.65 A | - | Unshielded | 55mOhm Max | 55 @ 500kHz | 8.5MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18334CFIXED IND 330UH 730MA 335MOHM TH |
2,514 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 330 µH | ±10% | 730 mA | - | Unshielded | 335mOhm Max | 58 @ 100kHz | 3MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18224CFIXED IND 220UH 900MA 230MOHM TH |
2,937 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 220 µH | ±10% | 900 mA | - | Unshielded | 230mOhm Max | 46 @ 100kHz | 3.5MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18223CFIXED IND 22UH 2.42A 25 MOHM TH |
2,146 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 22 µH | ±10% | 2.42 A | - | Unshielded | 25mOhm Max | 59 @ 500kHz | 11.8MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18153CFIXED IND 15UH 3A 18 MOHM TH |
4,918 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 15 µH | ±10% | 3 A | - | Unshielded | 18mOhm Max | 55 @ 500kHz | 15.9MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18105CFIXED IND 1MH 440MA 1 OHM TH |
1,154 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 1 mH | ±10% | 440 mA | - | Unshielded | 1Ohm Max | 94 @ 50kHz | 1.6MHz | - | 0°C ~ 70°C | 50 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18104CFIXED IND 100UH 1.2A 100 MOHM TH |
2,015 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 100 µH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 40 @ 100kHz | 7.4MHz | - | 0°C ~ 70°C | 100 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18103CFIXED IND 10UH 3.45A 15 MOHM TH |
1,614 |
|
Datasheet | 1800 | Axial | Bulk | Obsolete | Wirewound | - | 10 µH | ±10% | 3.45 A | - | Unshielded | 15mOhm Max | 64 @ 500kHz | 19MHz | - | 0°C ~ 70°C | 500 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
|
|
18106CFIXED IND 10MH 130MA 12 OHM TH |
2,530 |
|
Datasheet | 1800 | Axial | Tray | Obsolete | Wirewound | - | 10 mH | ±10% | 130 mA | - | Unshielded | 12Ohm Max | 143 @ 40kHz | 500kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia x 0.719" L (13.70mm x 18.25mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
