Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42183C-RFIXED IND 17.6UH 10.9A 11.6 MOHM |
2,476 |
|
Datasheet | 4200 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 17.6 µH | ±15% | 10.9 A | - | Unshielded | 11.6mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.87mm x 23.87mm) | 0.390" (9.90mm) |
|

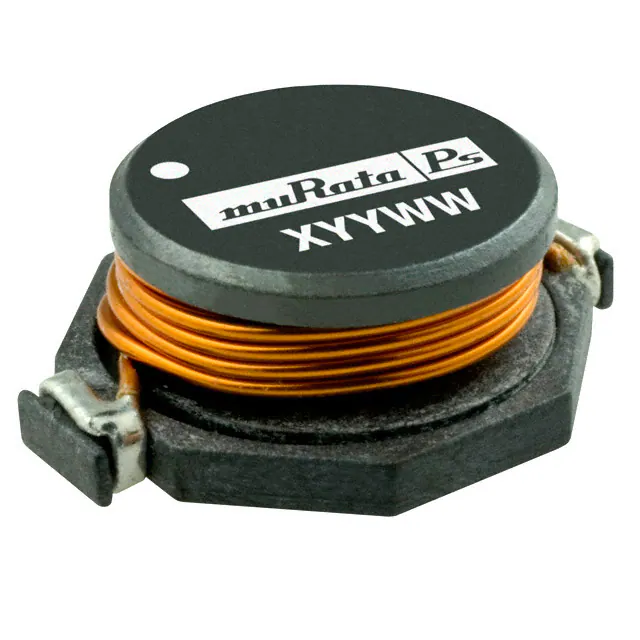

28224CFIXED IND 220UH 1.2A 381MOHM SMD |
2,429 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | - | 1.2 A | - | Unshielded | 381mOhm Max | 18 @ 800kHz | 5.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28152CFIXED IND 1.5UH 12.5A 3.6MOHM SM |
2,925 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | - | 12.5 A | - | Unshielded | 3.6mOhm Max | 43.9 @ 1MHz | 72MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28222CFIXED IND 2.2UH 11.2A 4.4MOHM SM |
4,409 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | - | 11.2 A | - | Unshielded | 4.4mOhm Max | 36.9 @ 1MHz | 58MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28223CFIXED IND 22UH 3.85A 42 MOHM SMD |
4,274 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | - | 3.85 A | - | Unshielded | 42mOhm Max | 43.5 @ 1MHz | 14.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28334CFIXED IND 330UH 950MA 575MOHM SM |
3,142 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | - | 950 mA | - | Unshielded | 575mOhm Max | 30.8 @ 800kHz | 5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28335CFIXED IND 3.3MH 290MA 5.76OHM SM |
1,890 |
|
Datasheet | 2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 mH | - | 290 mA | - | Unshielded | 5.76Ohm Max | 12.8 @ 800kHz | 3.2MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
83421CFIXED IND 420NH 3A 24 MOHM SMD |
2,780 |
|
Datasheet | 8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 420 nH | ±20% | 3 A | 5.69A | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83751CFIXED IND 750NH 2.7A 30 MOHM SMD |
1,507 |
|
Datasheet | 8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 750 nH | ±20% | 2.7 A | 4.55A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
|
|
83122CFIXED IND 1.2UH 1.7A 65 MOHM SMD |
2,196 |
|
Datasheet | 8300 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1.2 µH | ±20% | 1.7 A | 3.36A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.307" L x 0.205" W (7.80mm x 5.20mm) | 0.071" (1.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
