Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH6PPN6R8M43LFIXED IND 6.8UH 2.85A 28MOHM SMD |
2,336 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.85 A | 3.2A | Shielded | 28mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

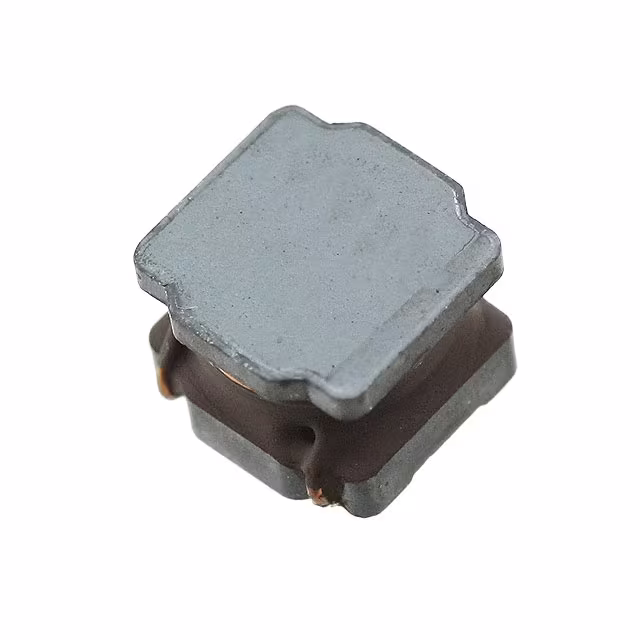

LQH6PPN100M43LFIXED IND 10UH 2.6A 44 MOHM SMD |
2,855 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 2.6 A | 2.6A | Shielded | 44mOhm | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN150M43LFIXED IND 15UH 2.2A 65 MOHM SMD |
2,266 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 2.2 A | 2.2A | Shielded | 65mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN220M43LFIXED IND 22UH 1.55A 108MOHM SMD |
1,769 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 1.55 A | 1.7A | Shielded | 108mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN330M43LFIXED IND 33UH 1.29A 137MOHM SMD |
1,044 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 1.29 A | 1.6A | Shielded | 137mOhm | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN470M43LFIXED IND 47UH 1.1A 230 MOHM SMD |
2,914 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.1 A | 1.25A | Shielded | 230mOhm Max | - | 6MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN680M43LFIXED IND 68UH 1A 289 MOHM SMD |
2,438 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±20% | 1 A | 1.1A | Shielded | 289mOhm | - | 5MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

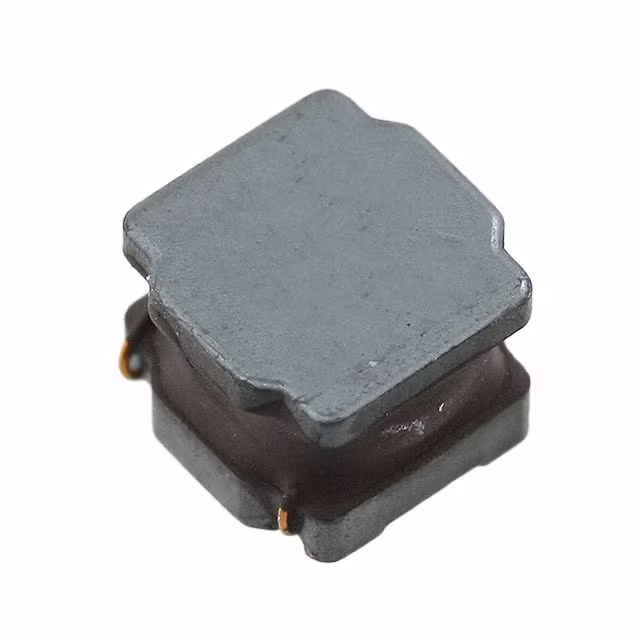

LQH6PPN101M43LFIXED IND 100UH 800MA 436MOHM SM |
2,449 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 800 mA | 920mA | Shielded | 436mOhm | - | 3MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQW2BHNR22J03LFIXED IND 220NH 240MA 0.7OHM SMD |
3,871 |
|
Datasheet | LQW2 | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Non-Magnetic | 220 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 35 @ 100MHz | 500MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.059" W (2.00mm x 1.50mm) | 0.070" (1.78mm) |
|
LQH2HPN1R2NJRLFIXED IND 1.2UH 1.24A 66MOHM SMD |
4,370 |
|
Datasheet | LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 1.24 A | 2.45A | Shielded | 66mOhm Max | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
