Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

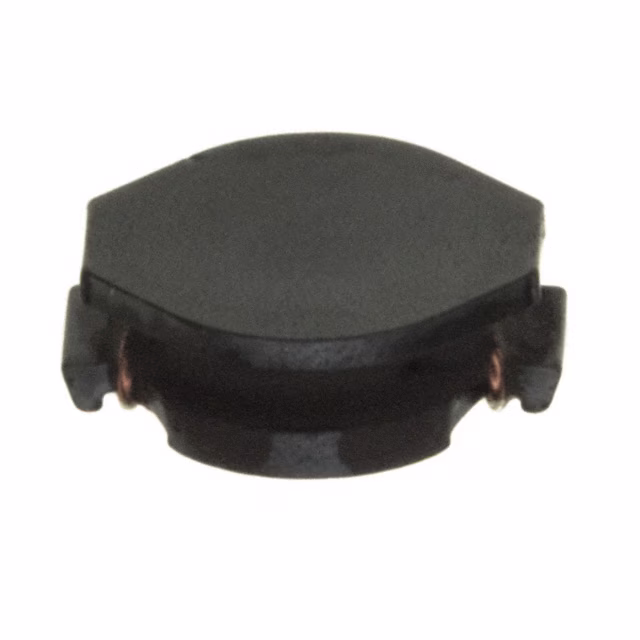

LQH55PN2R7NR0LFIXED IND 2.7UH 2.15A 40 MOHM |
4,832 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 2.7 µH | ±30% | 2.15 A | 2.07A | Shielded | 40mOhm | - | 50MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN3R3NR0LFIXED IND 3.3UH 2A 44 MOHM SMD |
2,184 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 2 A | 2A | Shielded | 44mOhm | - | 35MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN4R7NR0LFIXED IND 4.7UH 1.75A 60 MOHM |
3,425 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 4.7 µH | ±30% | 1.75 A | 1.4A | Shielded | 60mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN6R8NR0LFIXED IND 6.8UH 1.45A 87 MOHM |
1,575 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 6.8 µH | ±30% | 1.45 A | 1.2A | Shielded | 87mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN100MR0LFIXED IND 10UH 1.25A 110 MOHM |
4,598 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.25 A | 1A | Shielded | 110mOhm | - | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
|
LQH55PN220MR0LFIXED IND 22UH 850MA 260 MOHM |
1,268 |
|
Datasheet | LQH55 | 2220 (5750 Metric) | Cut Tape (CT) | Obsolete | Wirewound | - | 22 µH | ±20% | 850 mA | 670mA | Shielded | 260mOhm | - | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.197" (5.00mm) |
|
LQH6PPN1R0N43LFIXED IND 1UH 4.3A 9 MOHM SMD |
3,547 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±30% | 4.3 A | 7.5A | Shielded | 9mOhm | - | 110MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN2R2N43LFIXED IND 2.2UH 4.1A 14 MOHM SMD |
4,931 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±30% | 4.1 A | 5.6A | Shielded | 14mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH6PPN3R3N43LFIXED IND 3.3UH 3.8A 16 MOHM SMD |
1,013 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±30% | 3.8 A | 4.5A | Shielded | 16mOhm | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
LQH6PPN4R7M43LFIXED IND 4.7UH 3.2A 20 MOHM SMD |
1,275 |
|
Datasheet | LQH6 | 2424 (6060 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 3.2 A | 4A | Shielded | 20mOhm | - | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
