Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150S-1.00-54FIXED IND 54UH 1A 200 MOHM SMD |
270 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 54 µH | ±20% | 1 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
SWS-3.00-110FIXED IND 110UH 3A 90 MOHM SMD |
225 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
|
SH150S-3.00-17FIXED IND 17UH 3A 50 MOHM SMD |
1,103 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|
SH150T-0.83-248FIXED IND 248UH 830MA 600MOHM TH |
4,050 |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 248 µH | ±20% | 830 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH50F-0.85-680FIXED IND 680UH 850MA 1.25OHM TH |
100 |
|
Datasheet | SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 680 µH | ±20% | 850 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|

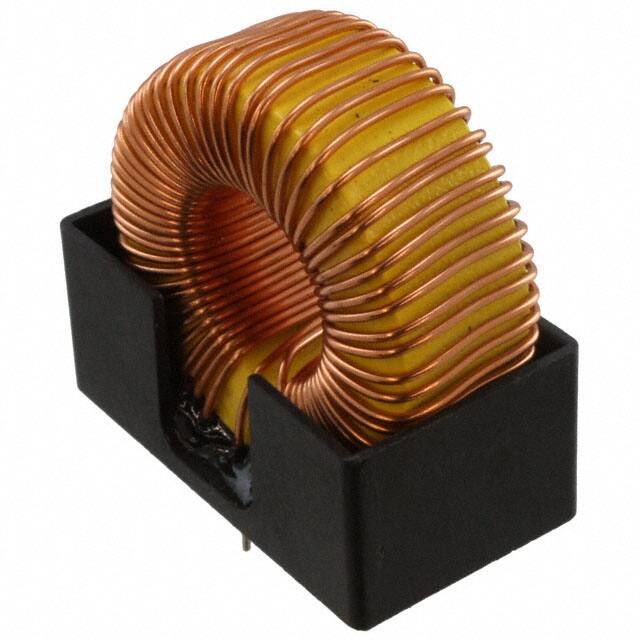

SH50C-3.0-330FIXED IND 330UH 3A 150 MOHM TH |
4,974 |
|
Datasheet | SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 3 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
SH50C-0.95-1000FIXED IND 1MH 950MA 240 MOHM TH |
4,824 |
|
Datasheet | SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
IND-10565AFIXED IND 1.8MH 175 MOHM TH |
1,858 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Metal Composite | 1.8 mH | ±10% | - | - | Unshielded | 175mOhm | - | - | - | - | 15 kHz | - | Through Hole | - | 2.500" Dia x 0.750" L (63.50mm x 19.05mm) | - |
|
SWC-3.0-100FIXED IND 100UH 3A 40 MOHM TH |
100 |
|
Datasheet | SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±20% | 3 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SH150T-1.87-53FIXED IND 53UH 1.87A 130 MOHM TH |
3,714 |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 53 µH | ±20% | 1.87 A | - | Unshielded | 130mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
