Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150S-3.00-25FIXED IND 25UH 3A 40 MOHM SMD |
3,545 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 25 µH | ±20% | 3 A | - | Unshielded | 40mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.443" (11.25mm) |
|
|
SH150S-1.87-53FIXED IND 53UH 1.87A 130MOHM SMD |
293 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 53 µH | ±20% | 1.87 A | - | Unshielded | 130mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|
SH150T-1.26-112FIXED IND 112UH 1.26A 300MOHM TH |
109 |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 112 µH | ±20% | 1.26 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|
SH150C-4.50-19FIXED IND 19UH 4.5A 20 MOHM TH |
146 |
|
Datasheet | SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 19 µH | ±20% | 4.5 A | - | Unshielded | 20mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | 0.937" (23.80mm) |
|
SH150S-3.00-38FIXED IND 38UH 3A 50 MOHM SMD |
2,836 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 38 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
SH150S-3.00-77FIXED IND 77UH 3A 80 MOHM SMD |
189 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 77 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
SH50V-0.9-330FIXED IND 330UH 900MA 740MOHM TH |
200 |
|
Datasheet | SH50 | Radial, Vertical | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.709" (18.00mm) |
|
SH150T-0.54-173FIXED IND 173UH 540MA 600MOHM TH |
200 |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 173 µH | ±20% | 540 mA | - | Unshielded | 600mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | 0.311" (7.90mm) |
|
DPV-0.5-330FIXED IND 330UH 500MA 265MOHM TH |
250 |
|
Datasheet | DP | Radial, Vertical, 4 Leads | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 330 µH | ±15% | 500 mA | - | Unshielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.701" L x 0.504" W (17.80mm x 12.80mm) | 0.787" (20.00mm) |
|

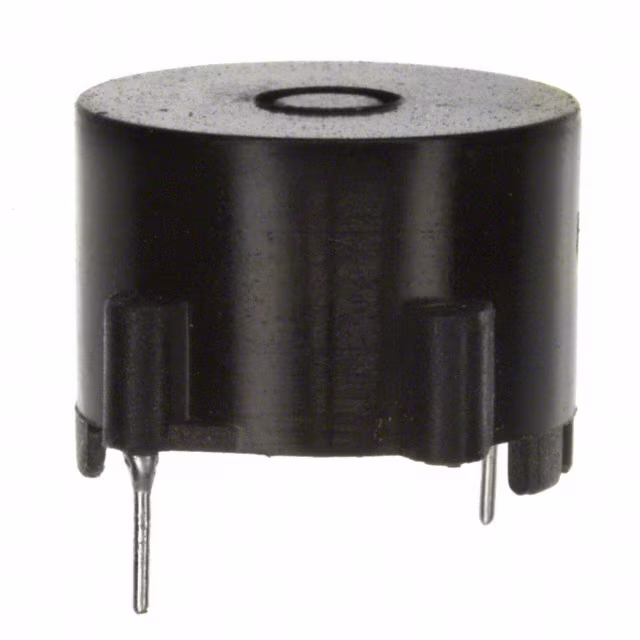

SH50F-0.9-330FIXED IND 330UH 900MA 740MOHM TH |
200 |
|
Datasheet | SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 330 µH | ±20% | 900 mA | - | Unshielded | 740mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
