Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-1.02-168FIXED IND 168UH 1.02A 400MOHM SM |
2,643 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 168 µH | ±20% | 1.02 A | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
|
SWS-1.54-77FIXED IND 77UH 1.54A 200MOHM SMD |
4,573 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 1.54 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
SWC-4.3-10FIXED IND 10.2UH 4.3A 26 MOHM TH |
3,984 |
|
Datasheet | SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10.2 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
SH260C-4.3-10FIXED IND 10.2UH 4.3A 26 MOHM TH |
4,978 |
|
Datasheet | SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 10.2 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.690" (17.53mm) |
|

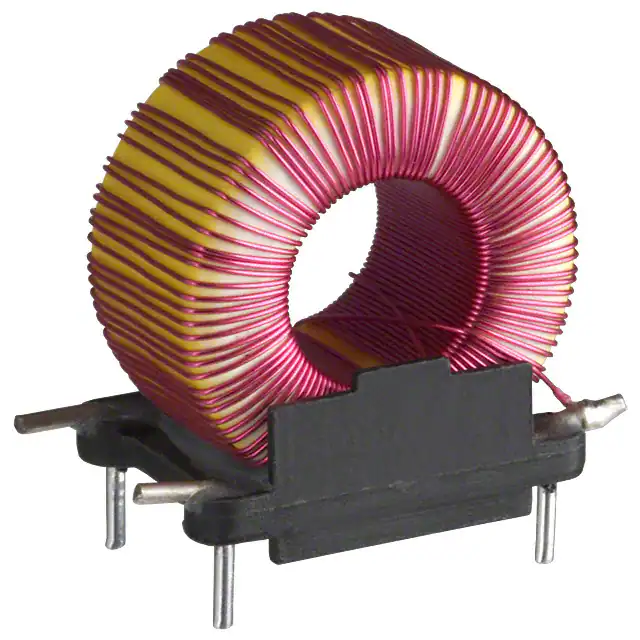

SWB-0.62-1500FIXED IND 1.5MH 620MA 1 OHM TH |
2,531 |
|
Datasheet | SW | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1.5 mH | ±20% | 620 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
SH260T-4.9-23FIXED IND 22.8UH 4.9A 36 MOHM TH |
3,601 |
|
Datasheet | SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.386" (9.80mm) |
|
|
SWB-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH |
3,508 |
|
Datasheet | SW | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
SH50B-0.62-1500FIXED IND 1.5MH 620MA 1 OHM TH |
1,982 |
|
Datasheet | SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | 1.5 mH | ±20% | 620 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
SH50B-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH |
1,831 |
|
Datasheet | SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
SWS-2.24-37FIXED IND 37UH 2.24A 100MOHM SMD |
4,019 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
