Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-4.9-23FIXED IND 22.8UH 4.9A 36MOHM SMD |
2,089 |
|
Datasheet | SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
SH260S-4.9-23FIXED IND 22.8UH 4.9A 36MOHM SMD |
4,930 |
|
Datasheet | SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|
DPV-5.0-100FIXED IND 100UH 5A 59 MOHM TH |
4,032 |
|
Datasheet | DP | Radial, Vertical, 4 Leads | Tray | Active | Toroidal | Iron Powder | 100 µH | ±15% | 5 A | - | Unshielded | 59mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.260" L x 0.807" W (32.00mm x 20.50mm) | 1.378" (35.00mm) |
|
SWC-0.95-1000FIXED IND 1MH 950MA 240 MOHM TH |
4,331 |
|
Datasheet | SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1 mH | ±20% | 950 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|
SH150S-0.36-375FIXED IND 375UH 360MA 1.3OHM SMD |
3,757 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 375 µH | ±20% | 360 mA | - | Unshielded | 1.3Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
SH50C-1.3-680FIXED IND 680UH 1.3A 200 MOHM TH |
3,101 |
|
Datasheet | SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 680 µH | ±20% | 1.3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.252" L x 0.701" W (31.80mm x 17.81mm) | 1.382" (35.10mm) |
|

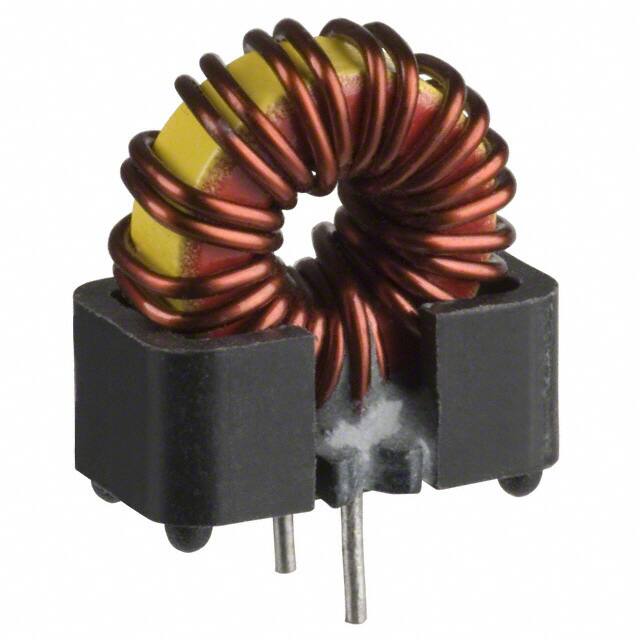

SWC-3.00-17FIXED IND 17UH 3A 50 MOHM TH |
1,258 |
|
Datasheet | SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 17 µH | ±20% | 3 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.340" (8.64mm) |
|
SH150S-0.82-78FIXED IND 78UH 820MA 300MOHM SMD |
2,089 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 78 µH | ±20% | 820 mA | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
|
SH150S-0.67-115FIXED IND 115UH 670MA 400MOHM SM |
4,941 |
|
Datasheet | SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 115 µH | ±20% | 670 mA | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | 0.337" (8.55mm) |
|
|
SH150T-1.81-168FIXED IND 168UH 1.81A 180MOHM TH |
3,571 |
|
Datasheet | SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 168 µH | ±20% | 1.81 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.386" (9.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
