Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXV1D1264LR22FIXED IND 220NH 53A 1.1MOHM SMD |
2,381 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 53 A | 100A | Shielded | 1.1mOhm Max | - | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.252" (6.40mm) |
|

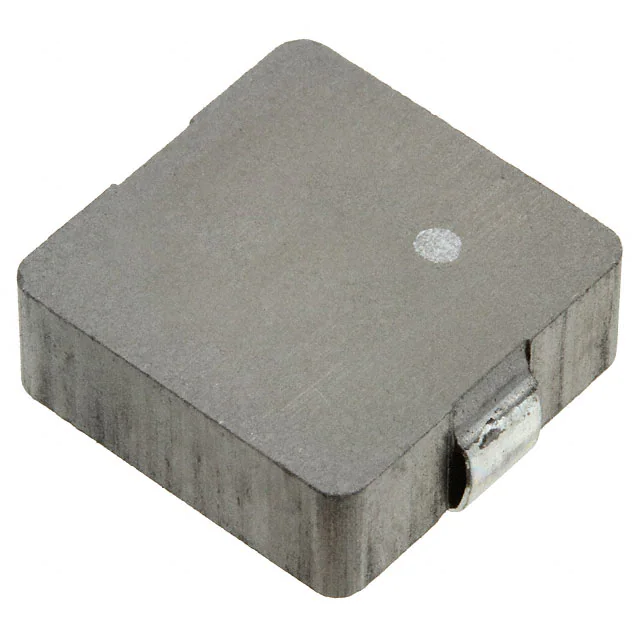

MPCH1250L1R5FIXED IND 1.5UH 21A 2.2 MOHM SMD |
3,120 |
|
Datasheet | MPCH | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 21 A | 21A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.563" L x 0.492" W (14.30mm x 12.50mm) | 0.197" (5.00mm) |
|
SHBC10-0R8A0107VCMC 107UH 3A 2LN TH |
2,285 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 107 µH | ±20% | 3 A | - | Unshielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.866" Dia (22.00mm) | 0.866" (22.00mm) |
|
|
SHBC14-1R2A0067VCMC 67UH 8A 2LN TH |
1,323 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 67 µH | ±20% | 8 A | - | Unshielded | 22.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.319" Dia (33.50mm) | 1.319" (33.50mm) |
|
SNG-25DB-086FIXED IND 86UH 20 MOHM CHAS MNT |
3,110 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.929" L x 0.945" W (49.00mm x 24.00mm) | 1.535" (39.00mm) |
|
|
MPXV1D1770L330FIXED IND 33UH 7.5A 47.3MOHM SMD |
1,405 |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 7.5 A | 12A | Shielded | 47.3mOhm Max | - | 3.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.276" (7.00mm) |
|
|
SHBC20-1R7A0097VCMC 97UH 12A 2LN TH |
2,711 |
|
Datasheet | SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 97 µH | ±20% | 12 A | - | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.622" Dia (41.20mm) | 1.622" (41.20mm) |
|
|
SNG-19B-080FIXED IND 80UH 10 MOHM CHAS MNT |
4,878 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | Chassis Mount | - | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.181" (30.00mm) |
|
|
SNG-25DA-086FIXED INDUCTOR 86UH 20 MOHM |
4,452 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 86 µH | -30%, +50% | - | - | Unshielded | 20mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.535" Dia (39.00mm) | 0.945" (24.00mm) |
|
|
SNG-19A-080FIXED INDUCTOR 80UH 10 MOHM |
3,260 |
|
Datasheet | SNG | Vertical, 2 Wire Leads | Bulk | Obsolete | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 80 µH | -30%, +50% | - | - | Unshielded | 10mOhm Max | - | - | - | -25°C ~ 105°C | 160 kHz | - | User Defined | - | 1.181" Dia (30.00mm) | 0.787" (20.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
