Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

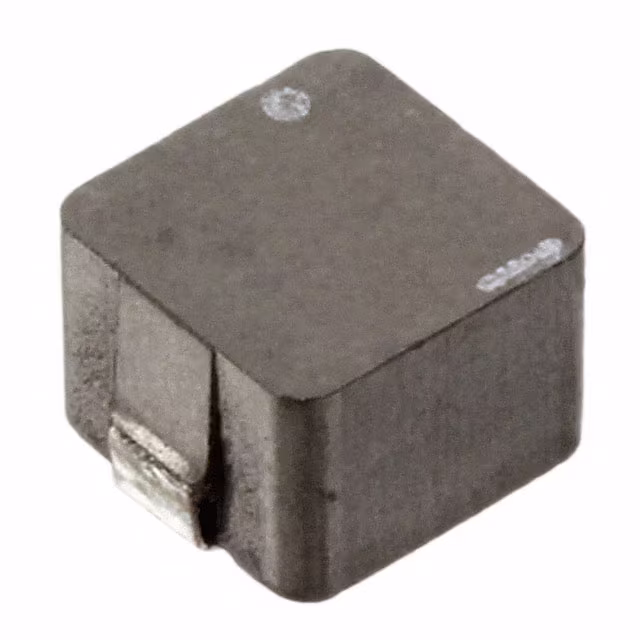

MPC0750LR68CFIXED IND 680NH 18A 2.2 MOHM SMD |
2,020 |
|
Datasheet | MPC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±20% | 18 A | 16A | Shielded | 2.2mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.197" (5.00mm) |
|
MPX1D1250LR47FIXED IND 470NH 34.8A 1.8MOHM SM |
4,204 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 470 nH | ±20% | 34.8 A | 55A | Shielded | 1.8mOhm Max | - | 54MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPX1D1250LR33FIXED IND 330NH 41.6A 1.3MOHM SM |
3,029 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 41.6 A | 65A | Shielded | 1.3mOhm Max | - | 68MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
|
MPX1D1250L3R3FIXED IND 3.3UH 16.8A 7.4MOHM SM |
1,534 |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 16.8 A | 22A | Shielded | 7.4mOhm Max | - | 17MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.197" (5.00mm) |
|
SBCP-11HY681HFIXED IND 680UH 550MA 1 OHM TH |
1,713 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 550 mA | 1.1A | Unshielded | 1Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY1R5HFIXED IND 1.5UH 5A 20 MOHM TH |
2,436 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 5 A | 25.3A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY6R8HFIXED IND 6.8UH 3.6A 30 MOHM TH |
4,100 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.6 A | 12.1A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY680HFIXED IND 68UH 1.8A 120 MOHM TH |
2,958 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.8 A | 3.6A | Unshielded | 120mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY4R7HFIXED IND 4.7UH 4.1A 30 MOHM TH |
1,492 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.1 A | 14.6A | Unshielded | 30mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
|
|
SBCP-11HY3R3HFIXED IND 3.3UH 4.4A 20 MOHM TH |
1,586 |
|
Datasheet | SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.4 A | 18.5A | Unshielded | 20mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.492" Dia (12.50mm) | 0.472" (12.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
