FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK16V60W,LVQMOSFET N-CH 600V 15.8A 4DFN |
7,336 |
|
Datasheet | DTMOSIV | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15.8A (Ta) | 10V | 190mOhm @ 7.9A, 10V | 3.7V @ 790µA | 38 nC @ 10 V | ±30V | 1350 pF @ 300 V | - | 139W (Tc) | 150°C (TJ) | - | - | Surface Mount | 4-DFN-EP (8x8) |
|
|
TK10V60W,LVQMOSFET N-CH 600V 9.7A 4DFN |
2,346 |
|
Datasheet | DTMOSIV | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 9.7A (Ta) | 10V | 380mOhm @ 4.9A, 10V | 3.7V @ 500µA | 20 nC @ 10 V | ±30V | 700 pF @ 300 V | - | 88.3W (Tc) | 150°C (TJ) | - | - | Surface Mount | 4-DFN-EP (8x8) |
|
TK155U65Z,RQDTMOS VI TOLL PD=150W F=1MHZ |
4,768 |
|
Datasheet | DTMOSVI | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 18A (Ta) | 10V | 155mOhm @ 9A, 10V | 4V @ 730µA | 29 nC @ 10 V | ±30V | 1635 pF @ 300 V | - | 150W (Tc) | 150°C | - | - | Surface Mount | TOLL |
|
TK25A60X5,S5XMOSFET N-CH 600V 25A TO220SIS |
1 |
|
Datasheet | DTMOSIV-H | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Ta) | 10V | 140mOhm @ 7.5A, 10V | 4.5V @ 1.2mA | 60 nC @ 10 V | ±30V | 2400 pF @ 300 V | - | 45W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220SIS |
|
|
TK20V60W,LVQMOSFET N-CH 600V 20A 4DFN |
4,482 |
|
Datasheet | DTMOSIV | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Ta) | 10V | 170mOhm @ 10A, 10V | 3.7V @ 1mA | 48 nC @ 10 V | ±30V | 1680 pF @ 300 V | - | 156W (Tc) | 150°C (TJ) | - | - | Surface Mount | 4-DFN-EP (8x8) |
|
TW070J120B,S1QSICFET N-CH 1200V 36A TO3P |
4,273 |
|
Datasheet | - | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 36A (Tc) | 20V | 90mOhm @ 18A, 20V | 5.8V @ 20mA | 67 nC @ 20 V | ±25V, -10V | 1680 pF @ 800 V | - | 272W (Tc) | -55°C ~ 175°C | - | - | Through Hole | TO-3P(N) |
.jpg "TPCA8007-H(TE12L,Q")
|
TPCA8007-H(TE12L,QMOSFET N-CH 100V 20A 8-SOPA |
3,037 |
|
Datasheet | * | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPCA8009-H(TE12L,QMOSFET N-CH 150V 7A 8SOP |
8,110 |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 7A (Ta) | 10V | 350mOhm @ 3.5A, 10V | 4V @ 1mA | 10 nC @ 10 V | ±20V | 600 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
2SK2963(TE12L,F)MOSFET N-CH 100V 1A PW-MINI |
5,983 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1A (Ta) | 4V, 10V | 700mOhm @ 500mA, 10V | 2V @ 1mA | 6.3 nC @ 10 V | ±20V | 140 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | - | - | Surface Mount | PW-MINI |

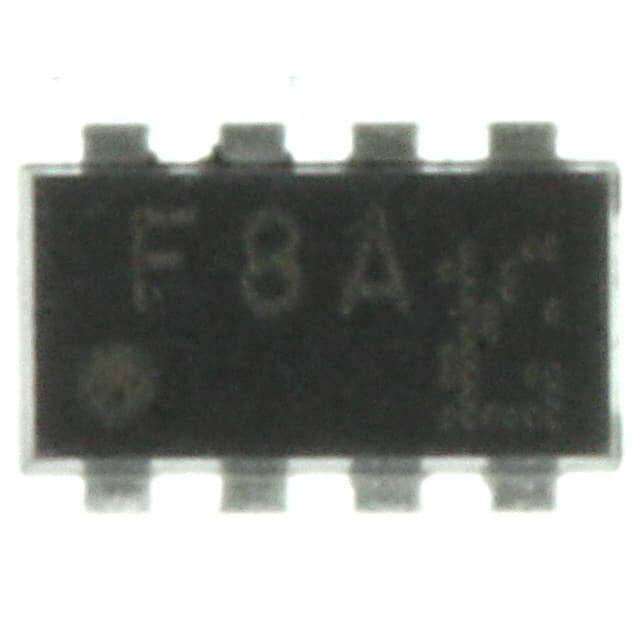

.JPG "TPCF8B01(TE85L,F,M")
|
TPCF8B01(TE85L,F,MMOSFET P-CH 20V 2.7A VS-8 |
5,864 |
|
Datasheet | U-MOSIII | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.7A (Ta) | 1.8V, 4.5V | 110mOhm @ 1.4A, 4.5V | 1.2V @ 200µA | 6 nC @ 5 V | ±8V | 470 pF @ 10 V | Schottky Diode (Isolated) | 330mW (Ta) | 150°C (TJ) | - | - | Surface Mount | VS-8 (2.9x1.5) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
