FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFP270N06T3MOSFET N-CH 60V 270A TO220AB |
9,500 |
|
Datasheet | HiperFET™, TrenchT3™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 270A (Tc) | 10V | 3.1mOhm @ 100A, 10V | 4V @ 250µA | 200 nC @ 10 V | ±20V | 12600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFC20N80PMOSFET N-CH 800V 11A ISOPLUS220 |
2,539 |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 500mOhm @ 10A, 10V | 5V @ 4mA | 85 nC @ 10 V | ±30V | 4680 pF @ 25 V | - | 166W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
.jpg "IXTH460P2")
|
IXTH460P2MOSFET N-CH 500V 24A TO247 |
2,926 |
|
Datasheet | PolarP2™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 270mOhm @ 12A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±30V | 2890 pF @ 25 V | - | 480W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXTA2N100MOSFET N-CH 1000V 2A TO263 |
4,843 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 2A (Tc) | 10V | 7Ohm @ 1A, 10V | 4.5V @ 250µA | 18 nC @ 10 V | ±20V | 825 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|

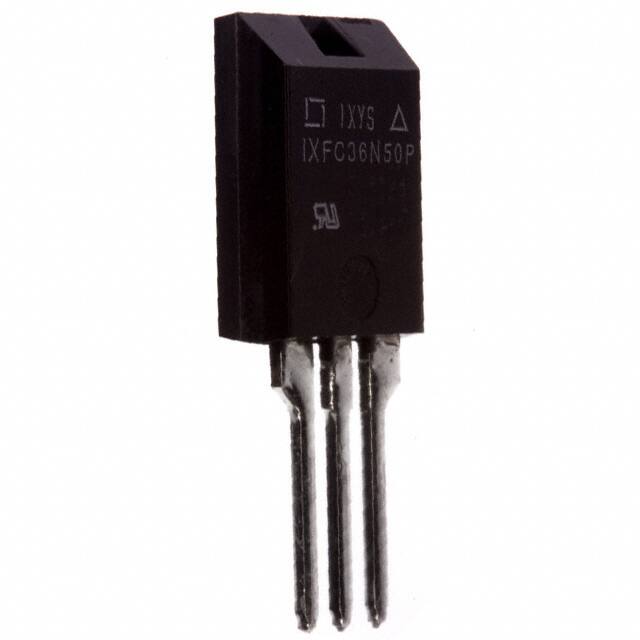

IXFC36N50PMOSFET N-CH 500V 19A ISOPLUS220 |
2,940 |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 19A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 4mA | 93 nC @ 10 V | ±30V | 5500 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXTH5N100AMOSFET N-CH 1000V 5A TO247 |
8,433 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 5A (Tc) | 10V | 2Ohm @ 2.5A, 10V | 4.5V @ 250µA | 130 nC @ 10 V | ±20V | 2600 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXKP24N60C5MOSFET N-CH 600V 24A TO220AB |
7,902 |
|
Datasheet | CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 790µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IXFT20N80PMOSFET N-CH 800V 20A TO268 |
3,856 |
|
Datasheet | HiPerFET™, Polar | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 20A (Tc) | 10V | 520mOhm @ 10A, 10V | 5V @ 4mA | 86 nC @ 10 V | ±30V | 4685 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
IXFH42N50P2MOSFET N-CH 500V 42A TO247AD |
6,187 |
|
Datasheet | HiPerFET™, PolarP2™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 42A (Tc) | 10V | 145mOhm @ 500mA, 10V | 4.5V @ 4mA | 92 nC @ 10 V | ±30V | 5300 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
IXTH88N15MOSFET N-CH 150V 88A TO247 |
4,348 |
|
Datasheet | - | TO-247-3 | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 88A (Tc) | 10V | 22mOhm @ 44A, 10V | 4V @ 250µA | 170 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
