FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFC52N30PMOSFET N-CH 300V 24A ISOPLUS220 |
7,038 |
|
Datasheet | PolarHT™ HiPerFET™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 24A (Tc) | 10V | 75mOhm @ 26A, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3490 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC74N20PMOSFET N-CH 200V 35A ISOPLUS220 |
3,975 |
|
Datasheet | PolarHT™ HiPerFET™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 35A (Tc) | 10V | 36mOhm @ 37A, 10V | 5V @ 4mA | 107 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC96N15PMOSFET N-CH 150V 42A ISOPLUS220 |
4,760 |
|
Datasheet | PolarHT™ HiPerFET™ | ISOPLUS220™ | Box | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 42A (Tc) | 10V | 26mOhm @ 48A, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC13N50MOSFET N-CH 500V 12A ISOPLUS220 |
2,255 |
|
Datasheet | HiPerFET™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 400mOhm @ 6.5A, 10V | 4V @ 2.5mA | 120 nC @ 10 V | ±20V | 2800 pF @ 25 V | - | 140W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC14N80PMOSFET N-CH 800V 8A ISOPLUS220 |
3,658 |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 770mOhm @ 7A, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|

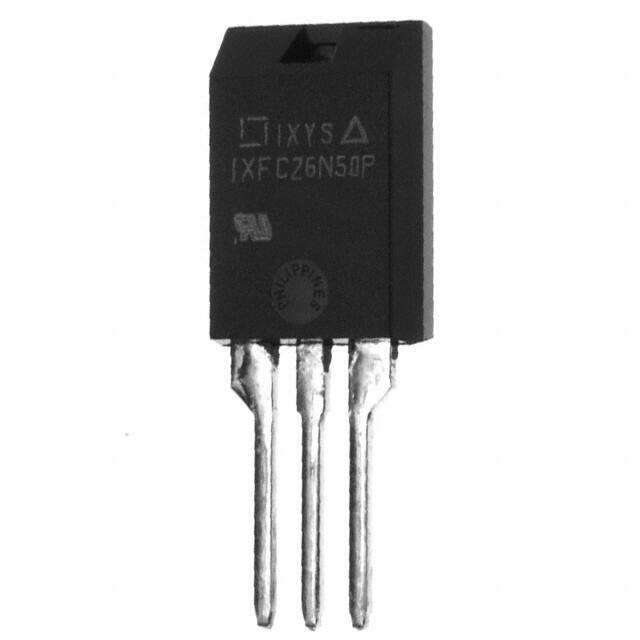

IXFC26N50PMOSFET N-CH 500V 15A ISOPLUS220 |
6,220 |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 15A (Tc) | 10V | 260mOhm @ 13A, 10V | 5.5V @ 4mA | 65 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
|
IXFC22N60PMOSFET N-CH 600V 12A ISOPLUS220 |
6,764 |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 360mOhm @ 11A, 10V | 5V @ 4mA | 58 nC @ 10 V | ±30V | 4000 pF @ 25 V | - | 130W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
.jpg "IXTH48N20")
|
IXTH48N20MOSFET N-CH 200V 48A TO247 |
3,507 |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 48A (Tc) | 10V | 50mOhm @ 15A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 275W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXTT50P085MOSFET P-CH 85V 50A TO268 |
9,065 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 85 V | 50A (Tc) | 10V | 55mOhm @ 25A, 10V | 5V @ 250µA | 150 nC @ 10 V | ±20V | 4200 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|

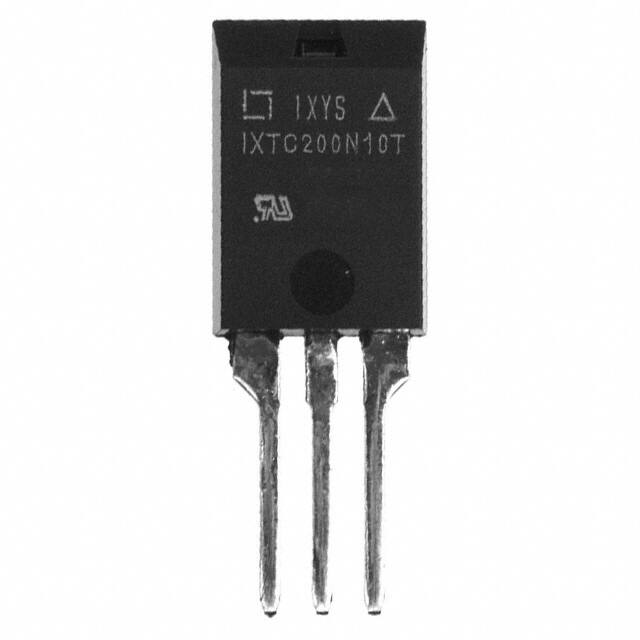

IXTC200N10TMOSFET N-CH 100V 101A ISOPLUS220 |
5,710 |
|
Datasheet | TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 101A (Tc) | 10V | 6.3mOhm @ 50A, 10V | 4.5V @ 250µA | 152 nC @ 10 V | ±30V | 9400 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
