FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

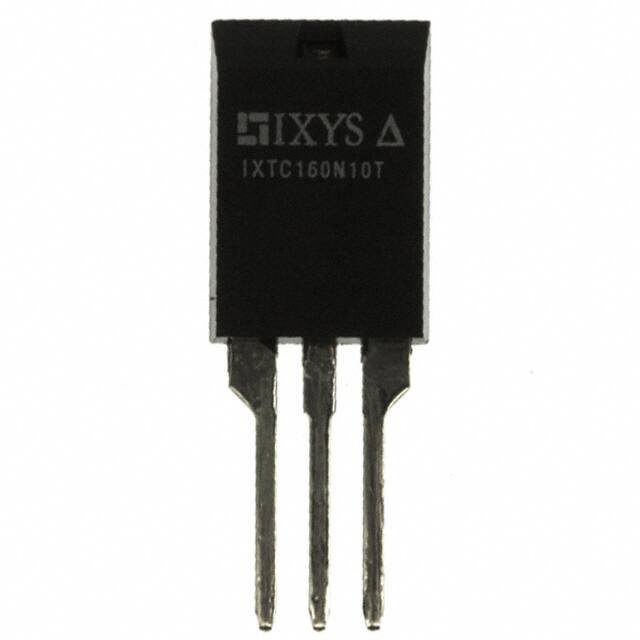

IXTC160N10TMOSFET N-CH 100V 83A ISOPLUS220 |
4,273 |
|
Datasheet | TrenchMV™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 83A (Tc) | 10V | 7.5mOhm @ 25A, 10V | 4.5V @ 250µA | 132 nC @ 10 V | ±20V | 6600 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXTA3N110-TRLMOSFET N-CH 1100V 3A TO263 |
6,257 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1100 V | 3A (Tc) | 10V | 4Ohm @ 1.5A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
IXFQ14N80PMOSFET N-CH 800V 14A TO3P |
5,319 |
|
Datasheet | HiPerFET™, Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 720mOhm @ 500mA, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
IXTA230N04T4MOSFET N-CH 40V 230A TO263AA |
8,307 |
|
Datasheet | Trench | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 230A (Tc) | 10V | 2.9mOhm @ 115A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±15V | 7400 pF @ 25 V | - | 340W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IXTT1N100MOSFET N-CH 1000V 1.5A TO268 |
5,761 |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1000 V | 1.5A (Tc) | 10V | 11Ohm @ 1A, 10V | 4.5V @ 25µA | 23 nC @ 10 V | ±20V | 480 pF @ 25 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-268AA |
|
|
IXTQ150N06PMOSFET N-CH 60V 150A TO3P |
3,159 |
|
Datasheet | Polar | TO-3P-3, SC-65-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 150A (Tc) | 10V | 10mOhm @ 75A, 10V | 5V @ 250µA | 118 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|
|
IXFA24N60XMOSFET N-CH 600V 24A TO263AA |
6,211 |
|
Datasheet | HiPerFET™, Ultra X | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 10V | 175mOhm @ 12A, 10V | 4.5V @ 2.5mA | 47 nC @ 10 V | ±30V | 1910 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA (IXFA) |
|
IXKC15N60C5MOSFET N-CH 600V 15A ISOPLUS220 |
6,796 |
|
Datasheet | CoolMOS™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 900µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
|
IXFH220N06T3MOSFET N-CH 60V 220A TO247 |
2,822 |
|
Datasheet | HiperFET™, TrenchT3™ | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 220A (Tc) | 10V | 4mOhm @ 100A, 10V | 4V @ 250µA | 136 nC @ 10 V | ±20V | 8500 pF @ 25 V | - | 440W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
IXFC12N80PMOSFET N-CH 800V 7A ISOPLUS220 |
2,194 |
|
Datasheet | HiPerFET™, PolarHT™ | ISOPLUS220™ | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | 930mOhm @ 6A, 10V | 5.5V @ 2.5mA | 51 nC @ 10 V | ±30V | 2800 pF @ 25 V | - | 120W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS220™ |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
