FETs, MOSFETs
Review FETs, MOSFETs FETs, MOSFETs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "IXTX90N25L2")
|
IXTX90N25L2MOSFET N-CH 250V 90A PLUS247-3 |
442 |
|
Datasheet | Linear L2™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 90A (Tc) | 10V | 33mOhm @ 45A, 10V | 4.5V @ 3mA | 640 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
IXFK32N100Q3MOSFET N-CH 1000V 32A TO264AA |
694 |
|
Datasheet | HiPerFET™, Q3 Class | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 32A (Tc) | 10V | 320mOhm @ 16A, 10V | 6.5V @ 8mA | 195 nC @ 10 V | ±30V | 9940 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264AA (IXFK) |
|
|
IXTX46N50LMOSFET N-CH 500V 46A PLUS247-3 |
686 |
|
Datasheet | Linear | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 20V | 160mOhm @ 500mA, 20V | 6V @ 250µA | 260 nC @ 15 V | ±30V | 7000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
IXFN120N65X2MOSFET N-CH 650V 108A SOT227B |
528 |
|
Datasheet | HiPerFET™, Ultra X2 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 108A (Tc) | 10V | 24mOhm @ 54A, 10V | 5.5V @ 8mA | 225 nC @ 10 V | ±30V | 15500 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFB30N120PMOSFET N-CH 1200V 30A PLUS264 |
448 |
|
Datasheet | HiPerFET™, Polar | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 30A (Tc) | 10V | 350mOhm @ 500mA, 10V | 6.5V @ 1mA | 310 nC @ 10 V | ±20V | 22500 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS264™ |
|
|
IXFN360N15T2MOSFET N-CH 150V 310A SOT227B |
250 |
|
Datasheet | HiPerFET™, TrenchT2™ | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 310A (Tc) | 10V | 4mOhm @ 60A, 10V | 5V @ 8mA | 715 nC @ 10 V | ±20V | 47500 pF @ 25 V | - | 1070W (Tc) | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN38N100PMOSFET N-CH 1000V 38A SOT-227B |
270 |
|
Datasheet | HiPerFET™, Polar | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 38A (Tc) | 10V | 210mOhm @ 19A, 10V | 6.5V @ 1mA | 350 nC @ 10 V | ±30V | 24000 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXFN300N20X3MOSFET N-CH 200V 300A SOT227B |
271 |
|
Datasheet | HiPerFET™, Ultra X3 | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 300A (Tc) | 10V | 3.5mOhm @ 150A, 10V | 4.5V @ 8mA | 375 nC @ 10 V | ±20V | 23800 pF @ 25 V | - | 695W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227B |
|

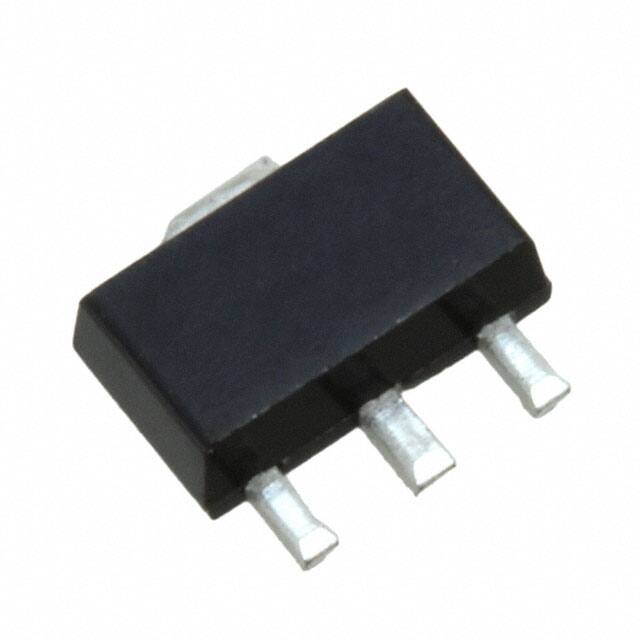

CPC3708CTRMOSFET N-CH 350V 5MA SOT89 |
3,806 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 350 V | 5mA (Ta) | 0.35V | 14Ohm @ 50mA, 350mV | - | - | ±20V | 300 pF @ 0 V | - | 1.1W (Ta) | -40°C ~ 110°C (TA) | - | - | Surface Mount | SOT-89 |
|
IXTP08N100PMOSFET N-CH 1000V 800MA TO220AB |
247 |
|
Datasheet | Polar | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 800mA (Tc) | 10V | 20Ohm @ 500mA, 10V | 4V @ 50µA | 11.3 nC @ 10 V | ±20V | 240 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
Frequently Asked Questions
What are FETs, MOSFETs components used for?
FETs, MOSFETs components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right FETs, MOSFETs part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find FETs, MOSFETs parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
